SONDA HXSD17 Reinforced Drag Chain: Durable Cable Routing Solutions for Medium-Duty Applications​​

The ​​SONDA HXSD17 reinforced drag chain​​ is engineered for precision and reliability in industrial automation. Featuring a ​​medium duty cable chain​​ design, this system supports cables up to 19mm in diameter while handling loads of 2kg/m. Ideal for CNC machines, robotics, and light-duty automation, it combines robust engineering with cost-effective flexibility. Below, we explore its technical specs, applications, and why it outperforms competitors like igus.

​​Key Features & Technical Specifications​​

​​1. Reinforced Design for Precision​​

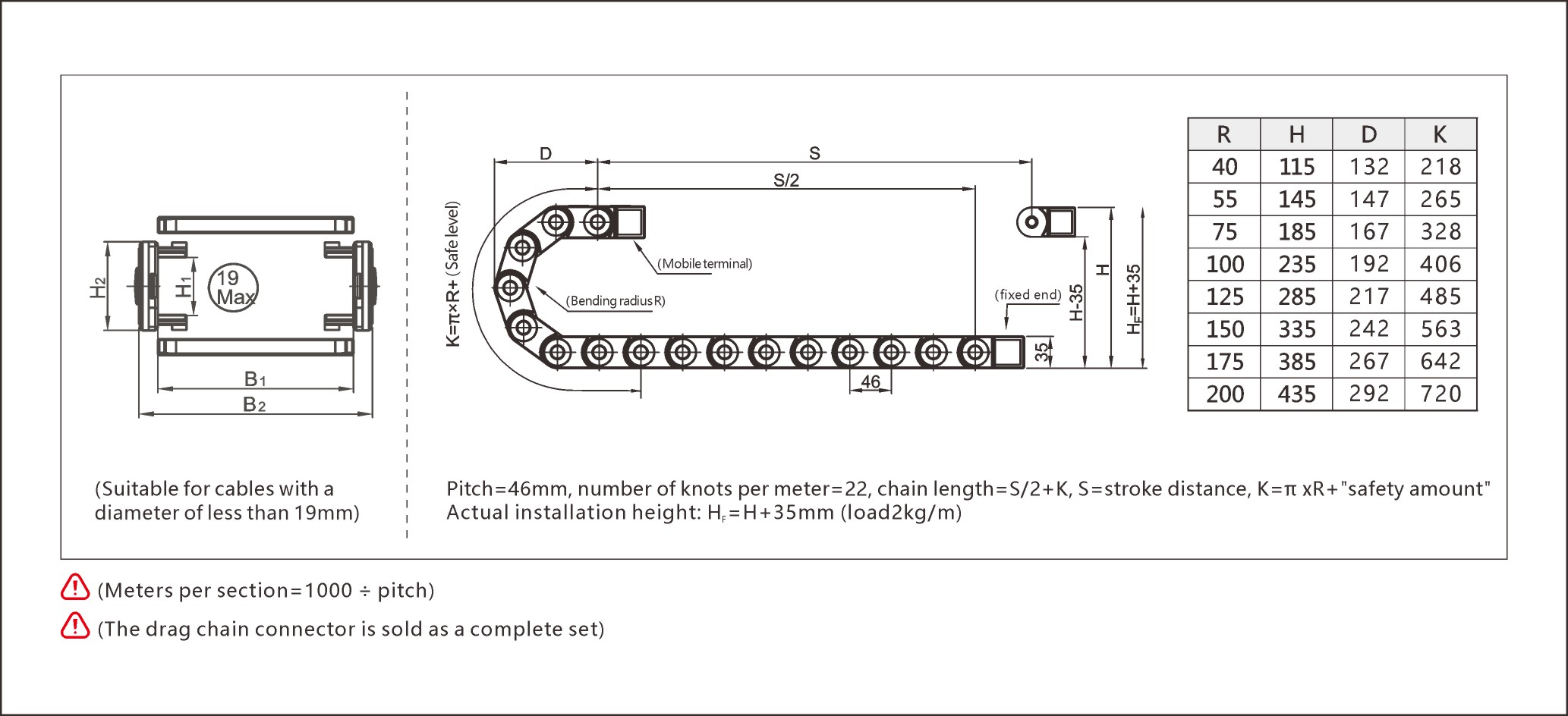

• ​​Structure​​: High-strength polymer with reinforced steel inserts for stability.
• ​​Pitch​​: 46mm, with 22 knots per meter for smooth motion and reduced friction.
• ​​Formula​​:
  • Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
  • Actual installation height: H = H + 35mm (load capacity: 2kg/m).

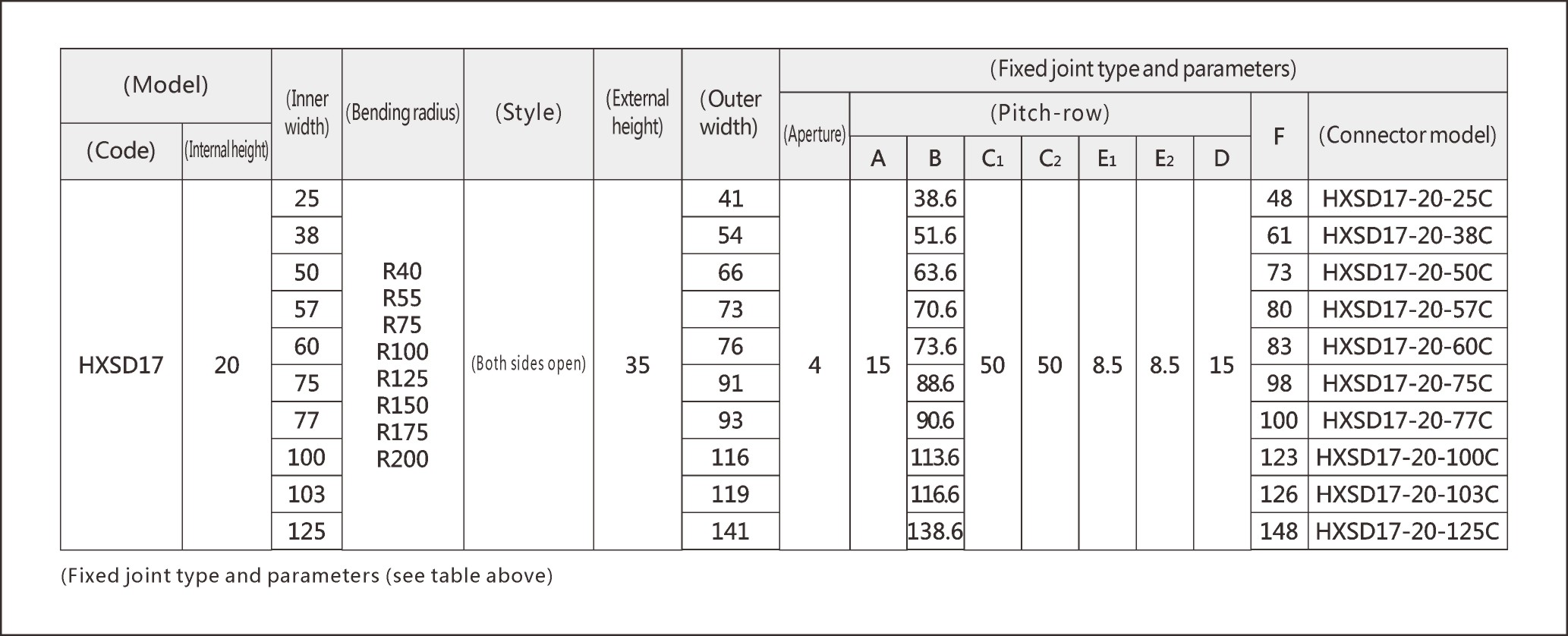

  • Cable compatibility: Optimized for cables up to 19mm in diameter.
• ​​Bending Radius​​: R = 35mm (fixed end), ensuring flexibility for tight turns.

​​2. Medium Duty Cable ChainApplications​​

​​1. CNC Machine Cable Management​​

• ​​Toolpath Precision​​: Secures cables during rapid spindle movements.
• ​​Load Capacity​​: Supports 2kg/m loads in light-duty machining setups.
• ​​Space Efficiency​​: Slim profile minimizes interference in compact systems.

​​2. Robotics & Automation​​

• ​​Smooth Motion​​: Reduces friction and wear in repetitive motion applications.
• ​​Noise Reduction​​: Low-friction materials minimize operational noise.

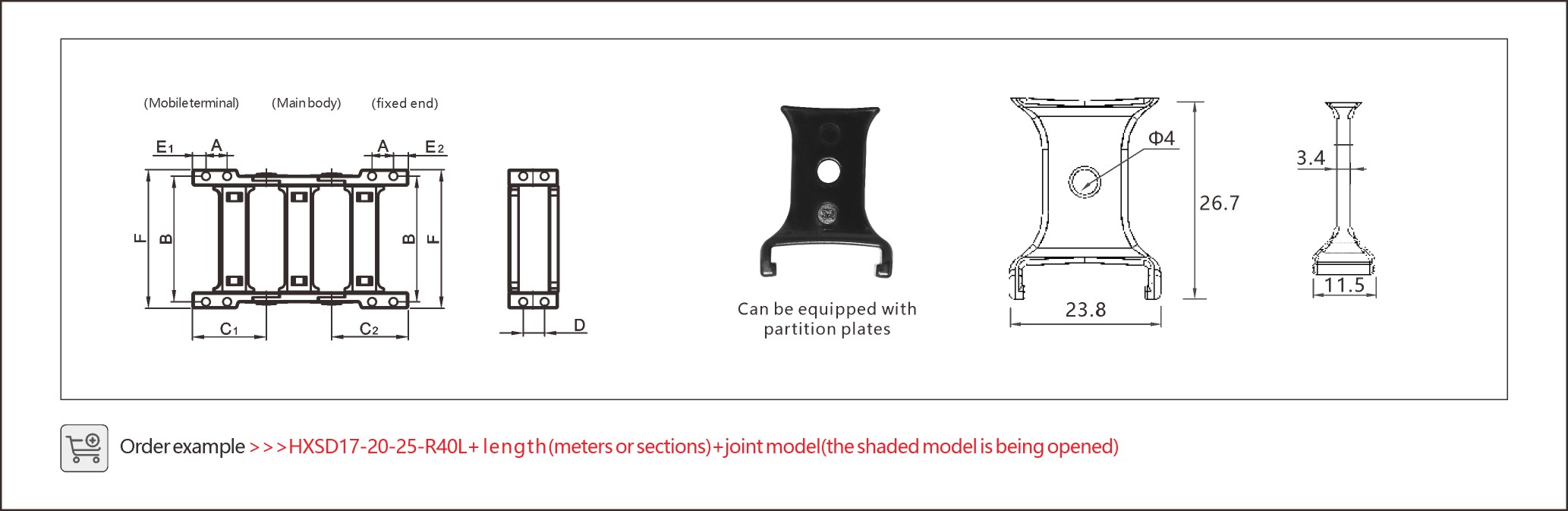

​​3. Custom cable chain routing solution​

• ​​Flexible Configurations​​: Tailored designs for unique machinery or small batches.
• ​​Scalable Lengths​​: Sections per meter = 1000 ÷ pitch. Connectors sold as complete sets.



​​Installation Guide & Maintenance Tips​​

​​Step 1: Calculate Chain Length​​

Use the formula:

1. Stroke distance (S) ÷ pitch (46mm) = Number of sections.
2. Total length = (S/2) + K (add safety margin for dynamic loads).
   ​​Example​​: For a 1.5-meter stroke:
   (1500 ÷ 46 ≈ 32.6 sections) + K (π × 35mm + safety).

​​Step 2: Optimize Installation​​

• ​​Height Adjustment​​: Add 35mm to the internal height for 2kg/m loads.
• ​​Bend Radius​​: Maintain ≥35mm at fixed ends to prevent kinking.

​​Step 3: Maintenance​​

• ​​Monthly Inspections​​: Check for wear, misalignment, or debris.
• ​​Lubrication​​: Apply silicone grease every 6 months.
• ​​Replace Proactively​​: Every 3–4 years under light use.



​​Why Choose SONDA HXSD17?​​

While competitors like igus offer similar products, SONDA leads with:

• ​​Lower Costs​​: Up to 30% cheaper for equivalent specs.
• ​​Faster Delivery​​: Ship within 7–10 days, even for customized orders.
• ​​Flexible MOQs​​: Ideal for prototypes or small batches.

​
The ​​SONDA HXSD17 reinforced drag chain​​ is a precision solution for medium-duty automation. With its ​​medium-duty cable chain​​ design, customizable routing, and cost-effective pricing, it outperforms competitors in durability and value.

​​Upgrade your systems with SONDA—engineered for reliability, priced for success.​
