Internal Height 65mm Reinforced Bridge type cable drag chain Double-Side Opening / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD29 Reinforced Gantry CNC Cable Track: Robust EDM & Robotic Arm Solutions for Industrial Automation
The SONDA HXSD29 reinforced gantry CNC cable track is engineered for precision engineering and heavy-duty applications. Designed for EDM wire carrier systems and robotic arm cable channels, this track supports extreme loads (H=H+85mm) and ensures reliable performance in CNC machining, robotics, and automation. With its reinforced structure and customizable design, it outperforms competitors in durability and value.
Key Features & Technical Specifications
1. Reinforced Gantry Design for Heavy Loads
- Structure: High-strength polymer with steel reinforcement for stability under 85kg/m loads.

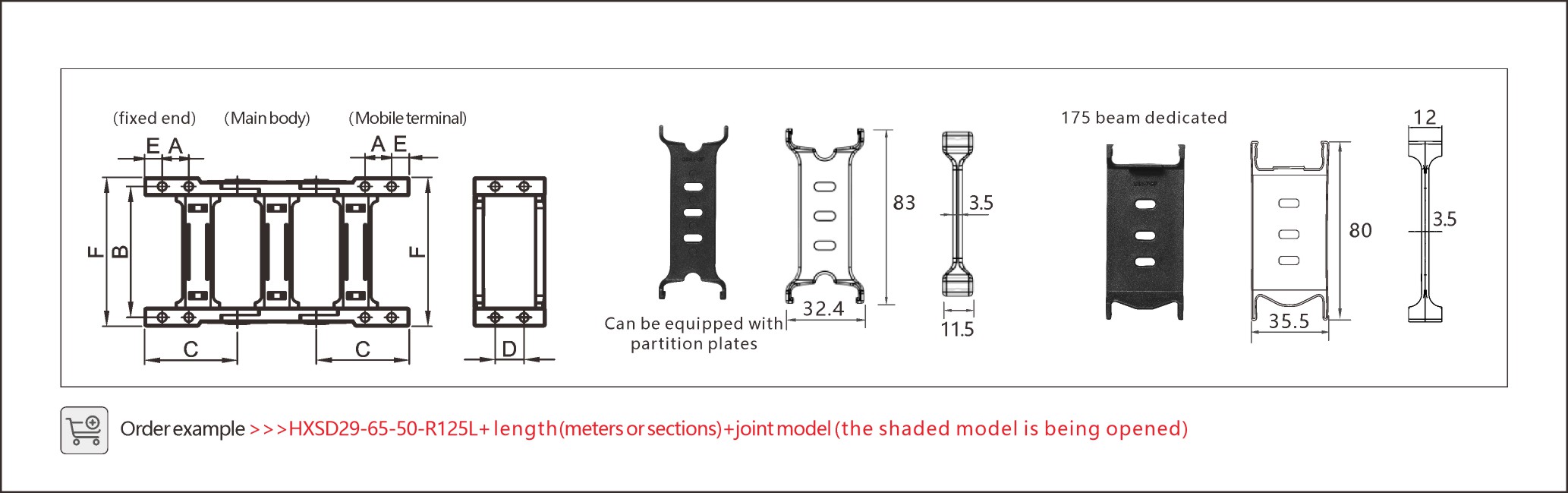

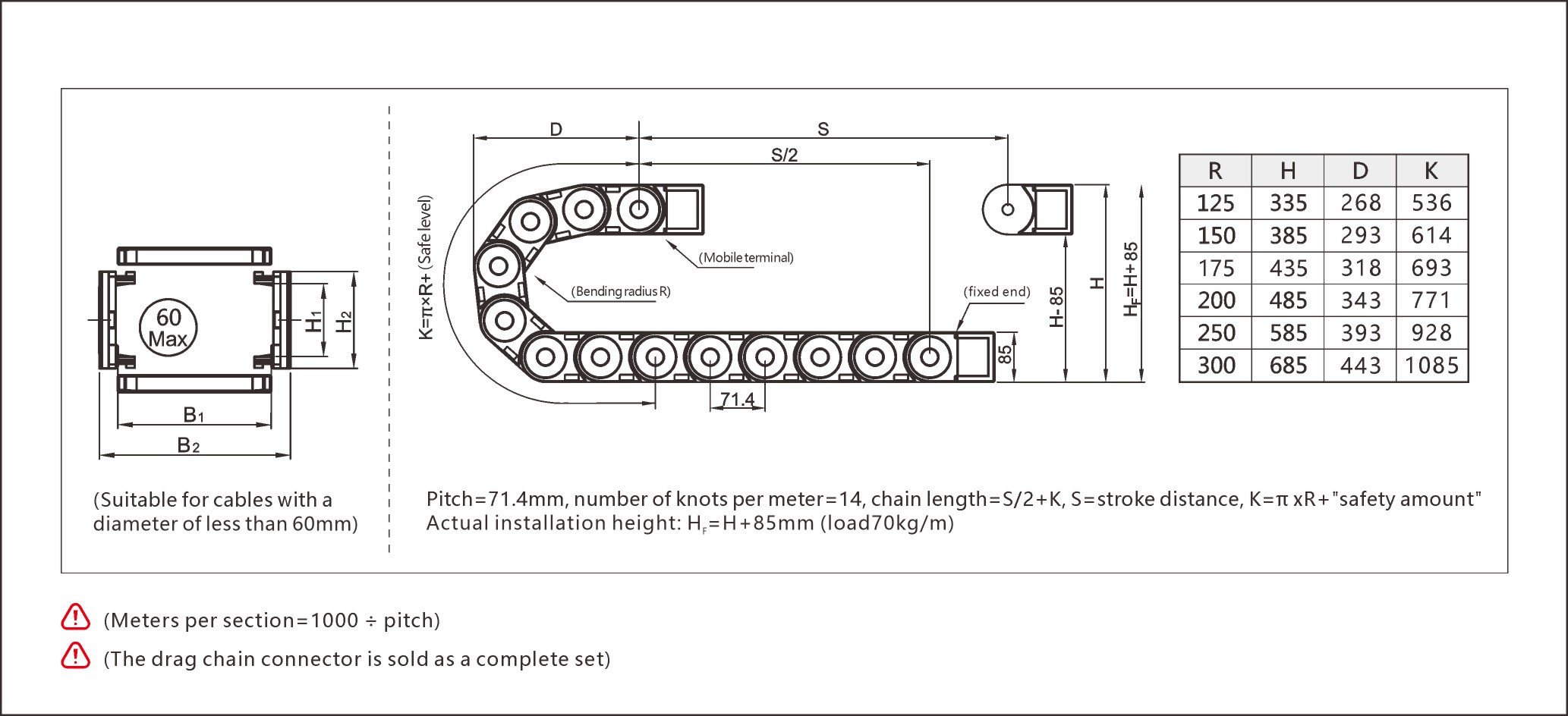

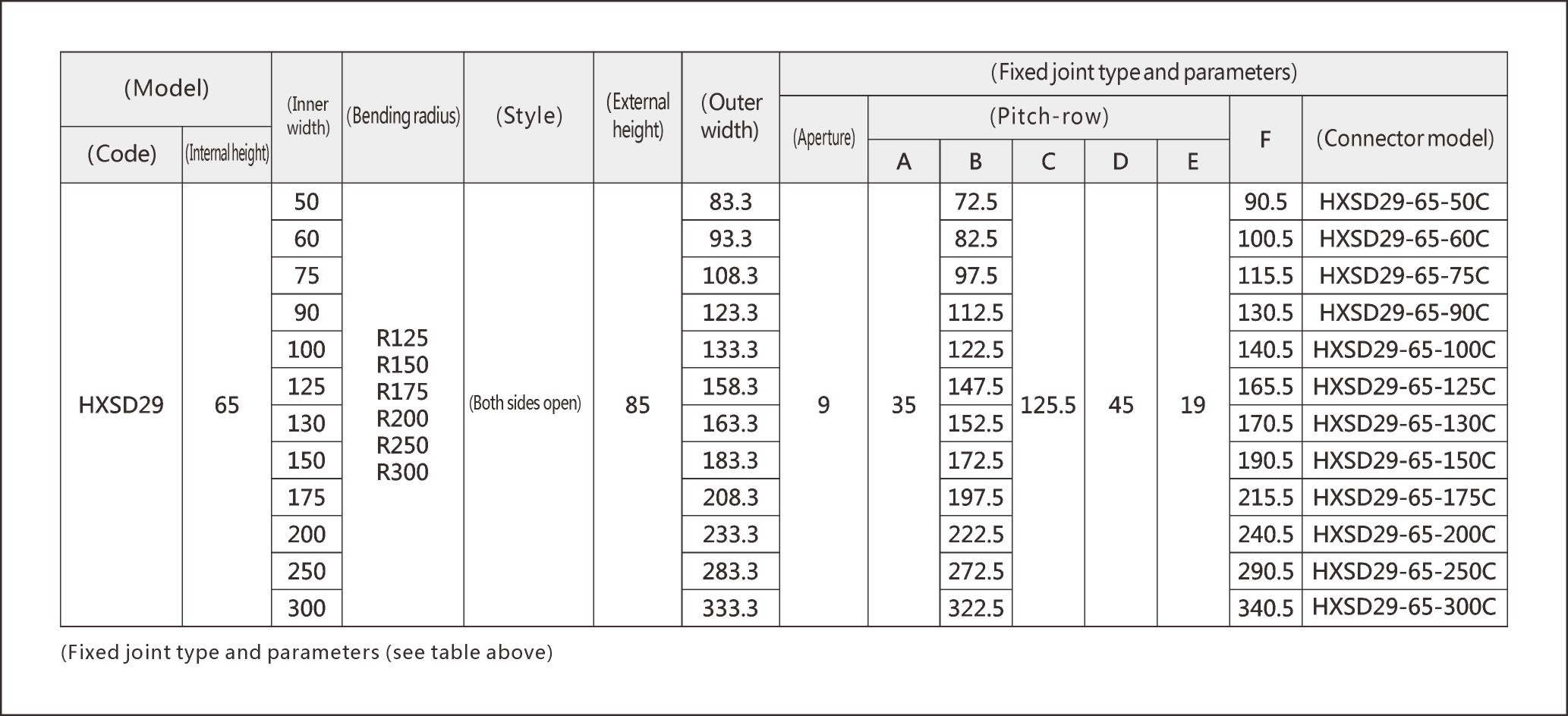

- Pitch: 71.4mm, with 14 knots per meter for smooth motion and reduced friction.
- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 85mm (optimized for EDM wire carriers and robotic arms).
- Cable compatibility: Supports high-diameter cables and multi-axis motion.
- Bending Radius: R = 80mm (fixed end), ensuring flexibility for tight turns.
2. EDM Wire Carrier System Applications
1. CNC Machining Centers
- EDM Wire Stability: Secures high-tension wires during precision milling and grinding.
- Load Capacity: Handles 85kg/m loads in metalworking and mold-making applications.
- Space Efficiency: Slim profile minimizes interference in compact gantry systems.
2. Robotics & Automation
- Robotic Arm Cable Channels: Stabilizes cables during multi-joint movements in welding or assembly robots.
- Noise Reduction: Low-friction materials minimize operational noise in cleanroom environments.
3. Custom Solutions
- Scalable Lengths: Sections per meter = 1000 ÷ pitch. Connectors sold as complete sets.
- Flexible Configurations: Tailored designs for unique machinery or small batches.
Installation Guide & Maintenance Tips
Step 1: Calculate Chain Length
Use the formula:
- Stroke distance (S) ÷ pitch (71.4mm) = Number of sections.
- Total length = (S/2) + K (add safety margin for dynamic loads).
Example: For a 3-meter stroke:
(3000 ÷ 71.4 ≈ 42.0 sections) + K (π × 80mm + safety).
Step 2: Optimize Installation
- Height Adjustment: Add 85mm to the internal height for EDM or robotic arm loads.
- Bend Radius: Maintain ≥80mm at fixed ends to prevent kinking.
Step 3: Maintenance
- Monthly Inspections: Check for wear, misalignment, or debris.
- Lubrication: Apply silicone grease every 3 months.
- Replace Proactively: Every 2–3 years under heavy use.
Why Choose SONDA HXSD29?
While competitors offer similar products, SONDA leads with:
- Lower Costs: Up to 30% cheaper for equivalent specs.
- Faster Delivery: Ship within 7–10 days, even for customized orders.
- Flexible MOQs: Ideal for prototypes or small batches.
The SONDA HXSD29 reinforced gantry CNC cable track is a powerhouse solution for industrial automation. With its reinforced gantry design, EDM wire carrier compatibility, and robotic arm cable channels, it delivers unmatched durability and value.
Upgrade your systems with SONDA—engineered for reliability, priced for success.
