25 × 50 mm Drag Chain Solutions for Laser Cutting and Automation

Understanding the 25 × 50 mm Drag Chain

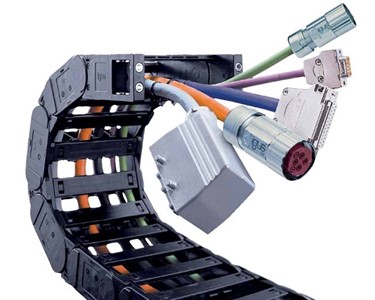

The 25 x 50 mm drag chain is a versatile cable management solution designed for applications that require more internal space without stepping into heavy-duty industrial sizes. Positioned between compact and large-scale models, this chain is widely used as a medium-duty cable guide chain in laser cutting machines, CNC equipment, and automated production lines.

Its balanced dimensions allow it to carry multiple power cables, signal wires, fiber optics, or pneumatic hoses while maintaining smooth and controlled motion. For manufacturers seeking reliability without excessive bulk, the 25 x 50 mm drag chain offers an ideal compromise between capacity and flexibility.

Benefits of a Wide-Cavity Drag Chain System

A wide-cavity drag chain system is specifically engineered to prevent cable overcrowding and internal abrasion. With a 25 x 50 mm profile, the internal width provides sufficient spacing for cable separation, which helps reduce friction and heat buildup during long operating cycles.

Key advantages include:

• Improved airflow around cables

• Reduced internal wear and noise

• Easier inspection and maintenance

• Support for mixed cable types in one carrier

These features are especially important in high-precision environments, where cable stability directly affects machine accuracy and uptime.

Medium-Duty Cable Guide Chain for Industrial Motion

As a medium-duty cable guide chain, the 25 x 50 mm model is well suited for continuous operation in demanding but not extreme conditions. It handles moderate loads and extended travel lengths without compromising smooth movement.

Typical applications include:

• CNC milling and routing systems

• Automated assembly equipment

• Packaging and labeling machines

• Material handling and positioning systems

Compared to lightweight chains, a medium-duty cable guide chain offers greater structural strength while remaining lighter and quieter than heavy steel alternatives.

Laser Cutting Machine Drag Chain Applications

A laser cutting machine drag chain must perform reliably in environments exposed to heat, vibration, dust, and high cycle rates. The 25 x 50 mm drag chain is a popular configuration for laser cutting tables because it accommodates power cables, control lines, and cooling hoses in a single organized system.

In laser cutting machines, this drag chain design helps:

• Maintain consistent cable bend radius

• Prevent signal interference

• Reduce unplanned downtime

• Protect cables from sharp debris and sparks

Its wide-cavity drag chain system ensures safe cable routing along fast-moving axes, supporting both cutting precision and long-term durability.

Installation and Customization Flexibility

Another advantage of the 25 x 50 mm drag chain is its compatibility with various mounting styles. Whether installed horizontally, vertically, or in a suspended layout, it integrates smoothly into aluminum profiles, steel frames, and enclosed machine housings.

Manufacturers can also customize length, connectors, and internal separators to match specific machine requirements. This flexibility makes the wide-cavity drag chain system suitable for both OEM production and equipment retrofits.

Choosing the Right Drag Chain Size

When selecting a medium-duty cable guide chain, consider:

• Total cable diameter and future expansion

• Required travel distance and speed

• Environmental factors such as dust or heat

• Maintenance access requirements

For many automation and laser systems, the laser cutting machine drag chain in a 25 x 50 mm size delivers dependable performance without unnecessary cost or complexity.

In conclusion, the 25 x 50 mm drag chain stands out as a practical, efficient solution for medium-duty motion systems. With its wide internal cavity, robust structure, and adaptability, it plays a key role in modern automation and laser cutting machine cable management.
