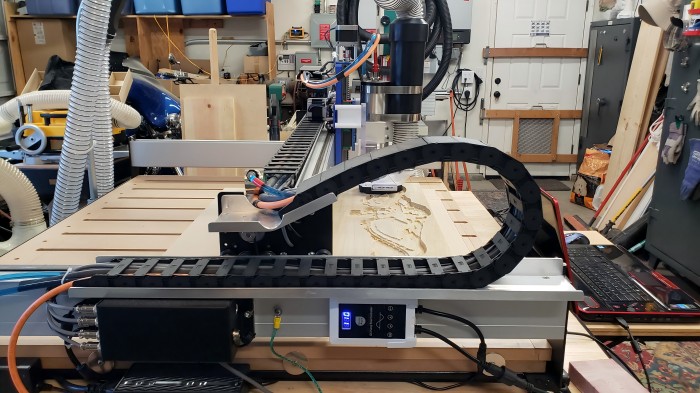

SONDA CNC Machine Cable Management: High-Flex Protection for 3-Axis & 5-Axis CNC Systems​​

In precision manufacturing, ​​CNC machine cable management​​ is critical for reliability, safety, and efficiency. Whether handling ​​3-axis CNC cable routing​​ or complex ​​5-axis CNC drag chain setups​​, SONDA delivers ​​high-flex cable protection​​ solutions that minimize wear, reduce downtime, and optimize performance. Engineered for demanding applications, our systems outperform competitors like igus in durability, flexibility, and value.

​​Why SONDA Excels in CNC Cable Management​​

SONDA combines engineering precision with industry-leading affordability:

• ​​High-Flex Durability​​: Reinforced polymers withstand 10 million+ cycles with minimal deformation.
• ​​Cost Efficiency​​: Up to 30% cheaper than igus, with faster delivery and no bulk order requirements.
• ​​Custom Solutions​​: Tailored designs for ​​3-axis CNC cable routing​​ and ​​5-axis drag chain setups​​.
• ​​Global Trust​​: Used by 50+ listed companies in aerospace, automotive, and medical device manufacturing.



​​Key Features & Technical Insights​​

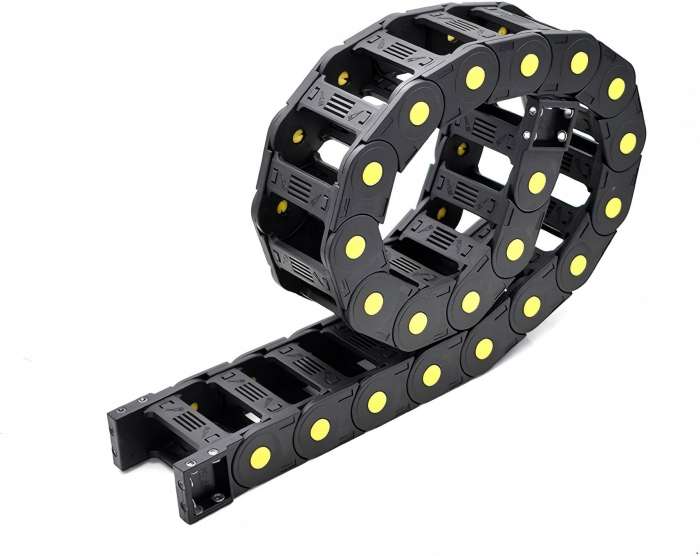

​​1. High-Flex Cable Protection Systems​​

• ​​Material​​: High-density polyethylene (HDPE) with stainless steel reinforcement for heat resistance (up to 120°C).
• ​​Dynamic Load Capacity​​: Supports 15–30 kg/m depending on configuration.
• ​​Bending Radius​​: R = 50mm (3-axis) / R = 80mm (5-axis) for smooth multi-axis movements.

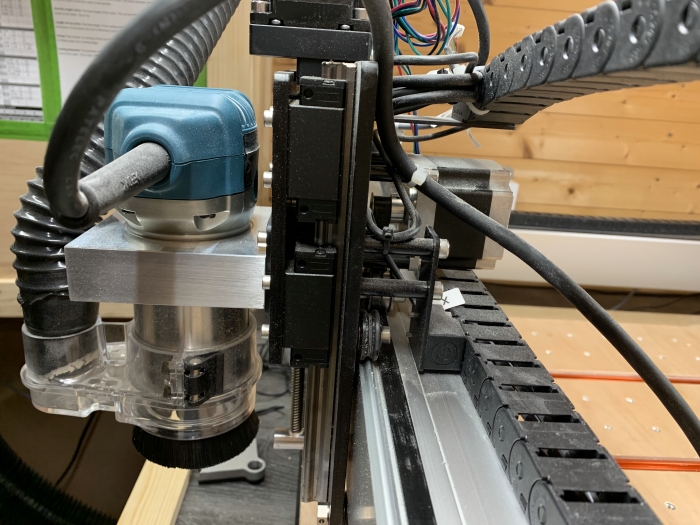

​​2. 3-Axis CNC Cable Routing​​

• ​​Precision Stability​​: Secures cables during rapid X-Y-Z axis movements in milling and drilling machines.
• ​​Space Efficiency​​: Slim profiles (as low as 20mm height) for compact CNC setups.
• ​​Noise Reduction​​: Low-friction design minimizes operational noise in cleanroom environments.

​​3. 5-Axis CNC Drag Chain Setup​​

• ​​Complex Motion Support​​: Manages synchronized motion in multi-axis machining centers.
• ​​Modular Design​​: Scalable for long strokes (up to 20 meters) and high-load applications.
• ​​Quick Installation​​: Pre-assembled modules reduce setup time by 40%.



​​Installation & Maintenance Guide​​

​​Step 1: Plan Cable Routing​​

• ​​3-Axis Systems​​: Use gentle curves (radius ≥50mm) to avoid sharp bends.
• ​​5-Axis Systems​​: Align drag chains parallel to machine axes for balanced load distribution.

​​Step 2: Calculate Chain Length​​

• ​​Formula​​: Total length = (Stroke distance ÷ pitch) × 2 + safety margin.
  • Example: For a 3-axis stroke of 1.5m (pitch 40mm):
    (1500 ÷ 40 = 37.5 sections) + 10% safety margin.

​​Step 3: Maintenance​​

• ​​Monthly Inspections​​: Check for wear, misalignment, or debris.
• ​​Lubrication​​: Apply silicone grease every 3 months.
• ​​Replace Proactively​​: Every 2–3 years under heavy use.

​​SONDA vs igus: The Clear Advantage​​

While igus offers similar products, SONDA leads with:

• ​​Lower Costs​​: Direct factory pricing with no middleman markup.
• ​​Faster Delivery​​: Ship within 5–7 days vs. igus’s 10–14 days.
• ​​Flexible MOQs​​: Customize orders as small as 10 meters.

​
SONDA’s ​​high-flex cable protection​​ systems redefine CNC machine cable management. Whether optimizing ​​3-axis CNC cable routing​​ or configuring ​​5-axis drag chain setups​​, our solutions deliver unmatched durability, precision, and affordability.

​​Upgrade your CNC systems with SONDA—engineered for precision, priced for success.​
