How Long Can You Make CNC Drag Chains? The Complete Guide​

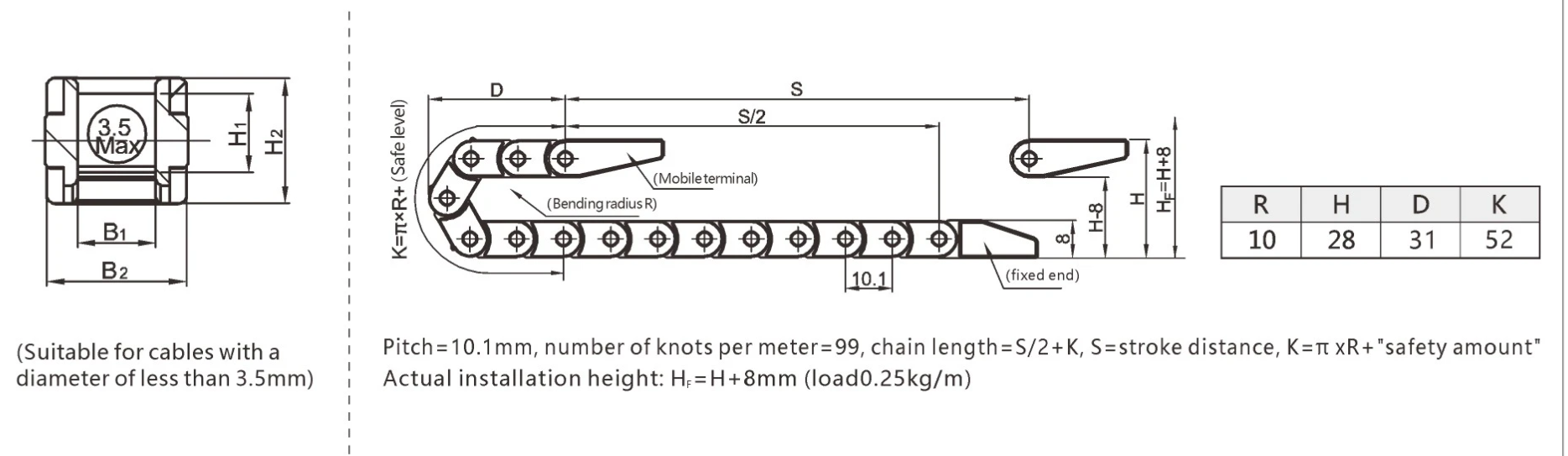

Understanding Drag Chain Dimensions
When selecting the right drag chain for your application, knowing the exact drag chain dimensions is essential. These measurements typically include inner height, inner width, outer height, and bending radius, all of which determine how well the chain will protect and guide cables or hoses. Choosing the right size not only ensures smooth operation but also extends the service life of your equipment. For CNC machines, robotics, and industrial automation, accurate drag chain dimensions help prevent cable wear and reduce downtime.

Using a Drag Chain Size Chart
A comprehensive drag chain size chart can simplify the selection process by matching your cable bundle size and bending radius requirements with the correct chain model. This chart often lists various chain widths, heights, and pitch lengths, making it easier to compare options. Whether you are replacing an existing chain or designing a new system, the size chart is a quick reference to avoid mismatches and ensure peak performance.

Now that you understand how to measure and choose the right drag chain size, a common question arises for CNC users: How long can a CNC drag chain be? The answer depends on your machine’s travel distance, chain type, and mounting method, which we’ll explore next.

When designing CNC machine cable management systems, one of the most critical questions is: ​​"How long can you make CNC drag chains?"​​ SHENGDA provides expert answers on ​​maximum cable drag chain length for CNC​​ applications, ​​custom length solutions​​, and the key ​​performance factors​​ that determine chain length limits.

​​Understanding CNC Drag Chain Length Limits​​

The maximum length of a CNC drag chain depends on several factors:
✔ ​​Cable weight and diameter​​
✔ ​​Bending radius requirements​​
✔ ​​Material strength​​ (Nylon 66 vs other polymers)
✔ ​​Operating environment​​ (temperature, load, speed)

SHENGDA's ​​custom length CNC drag chains​​ can be manufactured up to ​​12 meters​​ in standard configurations, with special designs available for longer lengths.

"We needed a 9-meter drag chain for our 5-axis CNC machine - SHENGDA delivered a perfect custom solution that outperformed our expectations." - CNC Engineer, Aerospace Manufacturer

​​Key Factors Affecting Drag Chain Length​​

​​1. Mechanical Load Capacity​​

• ​​Nylon 66 construction​​ provides superior strength-to-weight ratio
• ​​Reinforced links​​ for heavy cable bundles
• ​​Load distribution​​ across multiple chain links

​​2. Bending Radius Requirements​​

• Minimum bending radius determines practical length
• SHENGDA offers ​​optimized bending radii​​ for different CNC applications
• ​​Custom radius solutions​​ available

​​3. Dynamic Performance​​

• ​​Friction management​​ for smooth operation
• ​​Wear resistance​​ over long travel distances
• ​​Speed and acceleration​​ considerations

​​SHENGDA vs igus: Custom Length Solutions Comparison​​

Customer success: A woodworking machinery producer saved 30% on installation costs with SHENGDA's extra-long drag chains.

​​Benefits of Custom Length CNC Drag Chains​​

1. ​​Perfect Fit for Your Machine Layout​​

   • Eliminates excess slack or tension
   • Optimizes cable routing space

2. ​​Improved Performance​​

   • Consistent cable protection
   • Reduced wear and maintenance

3. ​​Cost Efficiency​​

   • No need for multiple shorter chains
   • Simplified installation process

​​Performance Considerations for Long Drag Chains​​

When specifying extra-long drag chains, consider:
• ​​Intermediate supports​​ for very long spans
• ​​Special lubrication​​ requirements
• ​​Environmental protection​​ needs
• ​​Dynamic load testing​​

SHENGDA's engineering team provides:
✅ ​​Free length calculation service​​
✅ ​​Load testing recommendations​​
✅ ​​Material selection guidance​

​

​​Why Choose SHENGDA for Your Custom Drag Chain Needs​​

1. ​​20% Lower Prices​​ than igus
2. ​​Faster Delivery​​ (5-7 days vs 15-20 days)
3. ​​Unlimited Customization​​ options
4. ​​50+ Public Company Clients​​ trust our solutions

​​How to Specify Your Custom Drag Chain​​

Follow these 3 simple steps:

1. ​​Submit your machine specifications​​
2. ​​Get a free design consultation​​
3. ​​Receive a quote with samples​
