Internal Height 15mm Small semi-enclosed type cable drag chain side-opening / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD08C Mini Cable Chains: Affordable Bridge-Type Solutions for Compact Automation
The SONDA HXSD08C mini cables chains are engineered for budget-conscious industries requiring durable and compact cable management. As the cable chain cheapest option, this mini bridge type cable chain supports cables up to 13mm in diameter and withstands loads of 1.5kg/m. Ideal for 3D printers, CNC machines, and small automation systems, it combines affordability, precision, and space-saving design.

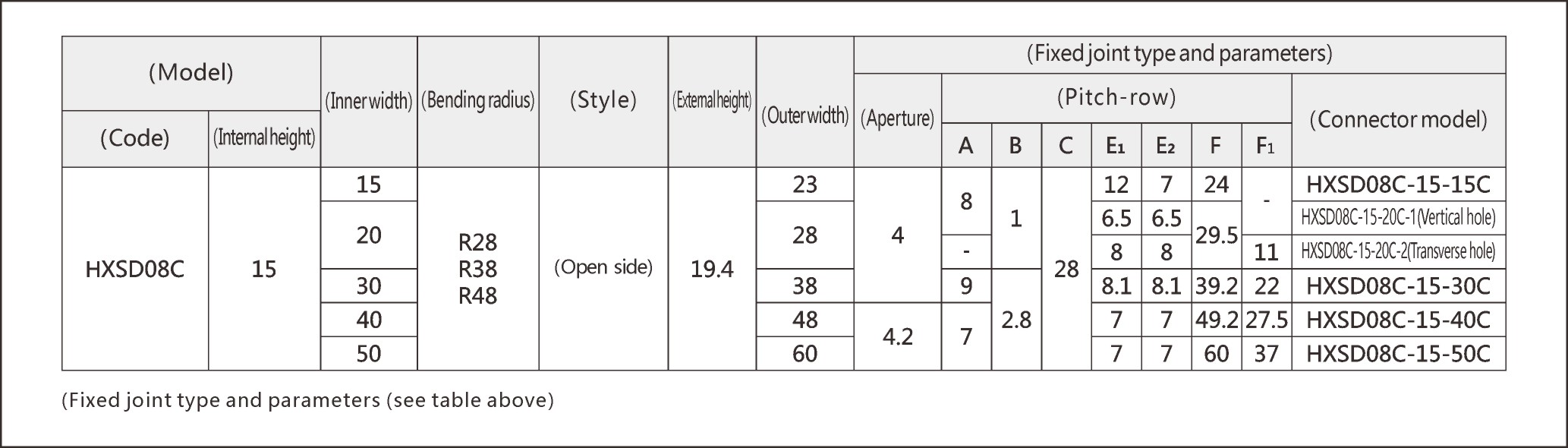

Key Features & Technical Specifications
1. Budget-Friendly & Compact Design
- Structure: Reinforced thermoplastic with steel reinforcement for lightweight durability.
- Pitch: 26mm (or 22mm for 15×50 configurations), with 39 knots per meter for smooth motion.

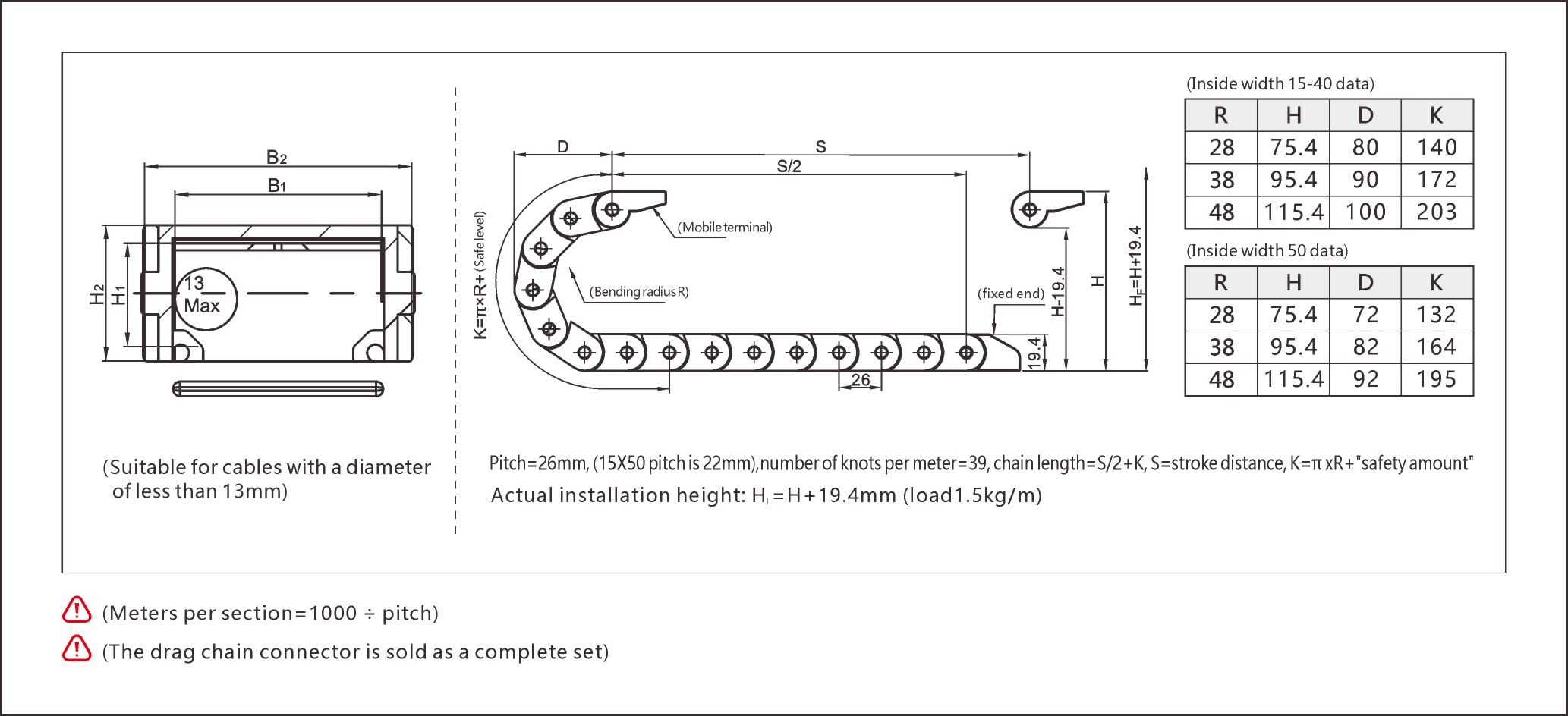

- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 19.4mm (load capacity: 1.5kg/m).
- Cable compatibility: Optimized for cables up to 13mm in diameter.
- Noise Level: ≤45dB (tested under 1.5kg/m load), ideal for noise-sensitive environments.
2. Applications & Benefits
1. 3D Printers & Additive Manufacturing
- Compact Fit: Slim profile (height: 19.4mm) fits desktop 3D printers and hobbyist setups.
- High-Speed Stability: Secures cables during rapid nozzle movements and Z-axis adjustments.
- Cost Efficiency: Up to 40% cheaper than competitors like igus.
2. Small Automation Systems
- Mini Bridge-Type Design: Ideal for pick-and-place robots, CNC routers, and linear actuators.
- Dynamic Load Handling: Maintains cable integrity under 1.5kg/m loads during precision tasks.
3. Custom Solutions

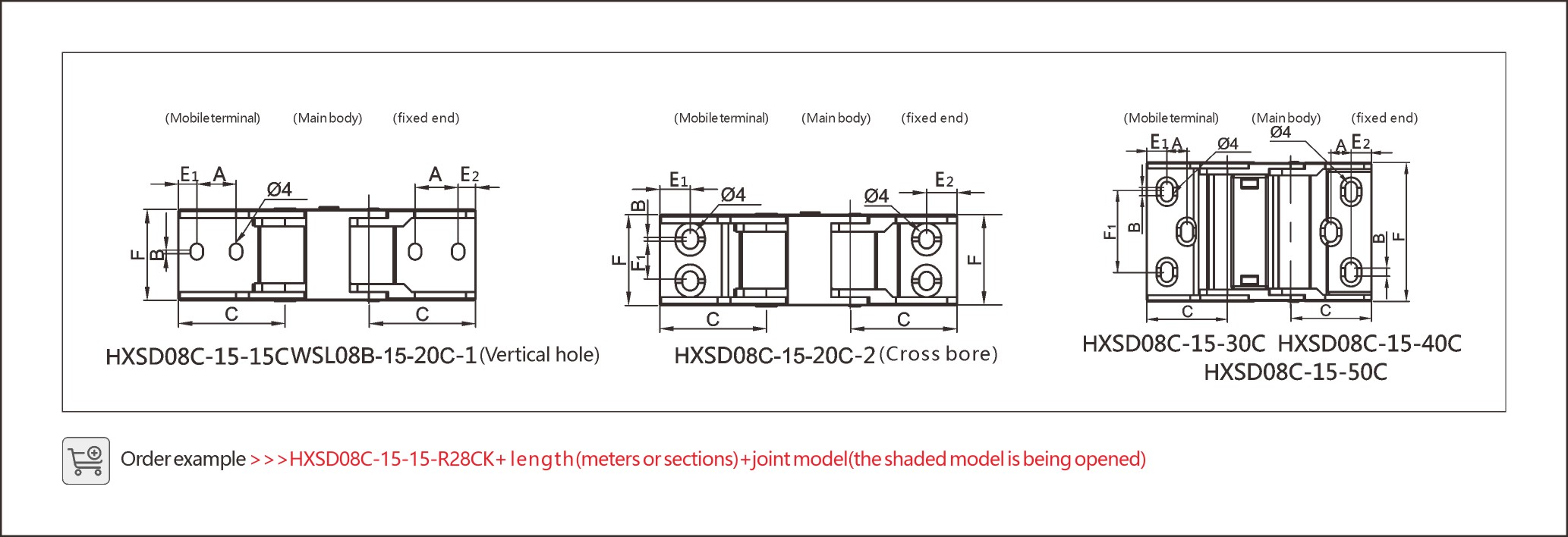

- Scalable Lengths: Sections per meter = 1000 ÷ pitch (≈38.46 sections/meter). Connectors sold as complete sets.
- Flexible Configurations: Tailored designs for unique machinery or prototypes.
Installation Guide & Maintenance Tips
Step 1: Calculate Chain Length
Use the formula:
- Stroke distance (S) ÷ pitch (26mm) = Number of sections.
- Total length = (S/2) + K (add safety margin for dynamic loads).
Example: For a 1-meter stroke:
(1000 ÷ 26 ≈ 38.5 sections) + K (π × 19.4mm + safety).
Step 2: Optimize Installation
- Height Adjustment: Add 19.4mm to the internal height for 1.5kg/m loads.
- Bend Radius: Maintain ≥25mm at fixed ends to prevent kinking.
Step 3: Maintenance
- Monthly Inspections: Check for wear, misalignment, or debris.
- Lubrication: Apply silicone grease every 6–12 months (low-friction design reduces wear).
- Replace Proactively: Every 3–5 years under light use.
Why Choose SONDA HXSD08C?
While competitors offer similar products, SONDA leads with:
- Lowest Costs: Up to 40% cheaper than igus or other brands.
- Fast Delivery: Ship within 7–10 days, even for customized orders.
- Flexible MOQs: No minimum order—ideal for startups or small projects.
The SONDA HXSD08C mini cable chains are the ultimate budget-friendly solution for compact automation. With its bridge-type design, 3D printer compatibility, and unbeatable pricing, it delivers unmatched value for small-scale applications.
Upgrade your systems with SONDA—affordable engineering for precision success.
