Internal Height 26mm Small BRIDGE type cable drag chain Internally openable / e-chain replacement / IGUS replacement cable carrier
SONDA HXSDHE1 Mini Flexible Electrical Cable Track: Compact Drag Chain Solutions for CNC & Precision Automation
The SONDA HXSDHE1 Mini Flexible Electrical Cable Track is engineered for industrial automation requiring lightweight, high-performance cable management. As a small drag chain cable carrier, it supports cables up to 32mm in diameter and withstands loads of 8kg/m. Ideal for CNC machines, robotics, and precision assembly lines, this tiny drag chain combines flexibility, durability, and modular scalability.
Key Features & Technical Specifications
1. Compact & Flexible Design
- Structure: Reinforced thermoplastic with steel inserts for stability during rapid CNC tool changes.
- Pitch: 46mm, with 22 knots per meter for smooth motion and reduced friction (up to 1.5m/s).

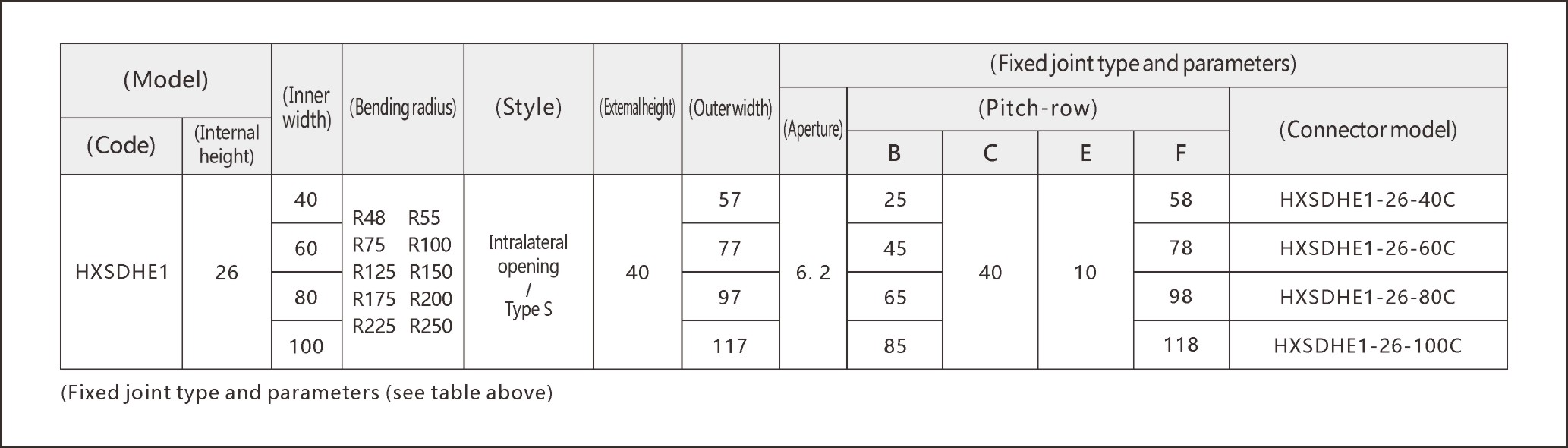

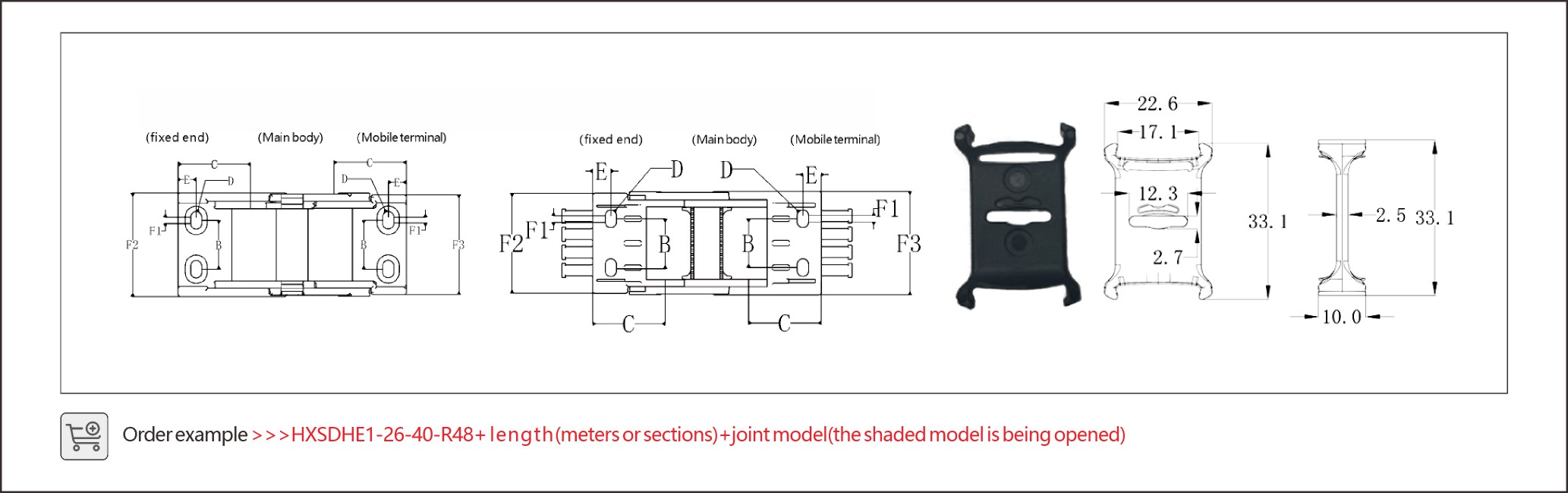

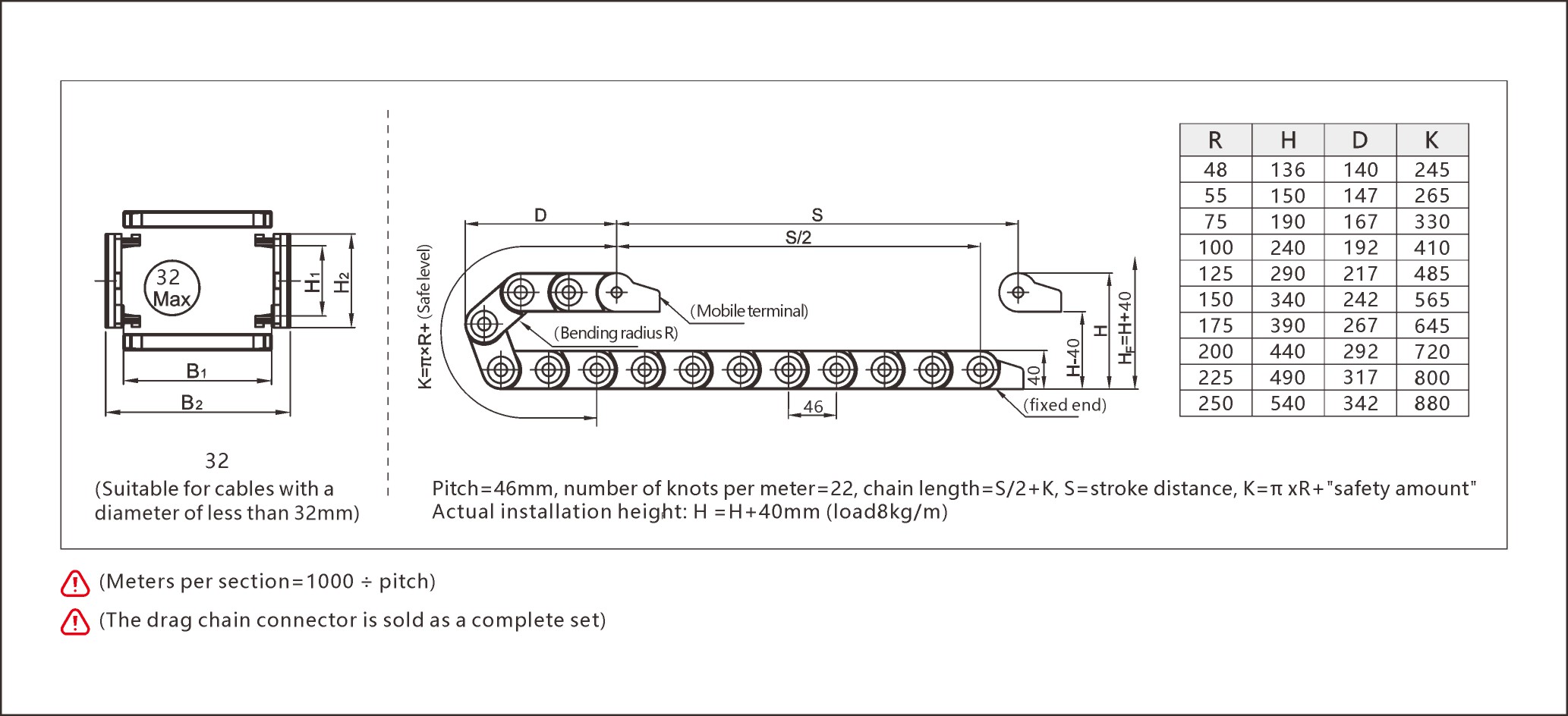

- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 40mm (load capacity: 8kg/m).
- Cable compatibility: Optimized for cables ≤32mm (power, data, hydraulic hoses).
- Modularity: Interchangeable sections (≈22 sections/meter) for easy repairs or expansions.
2. Applications & Benefits
1. CNC Machine Cable Routing
- Precision Stability: Maintains cable integrity during multi-axis movements in milling and turning operations.
- Space Efficiency: Slim profile (height: 40mm) fits compact CNC enclosures and robotic arms.
- Dynamic Load Handling: Supports 8kg/m loads in high-speed machining and automated tool changes.
2. Industrial Automation
- Small Drag Chain Cable Carrier: Secures thick cables during robotic palletizing or conveyor systems.
- Noise Reduction: Smooth inner design minimizes operational noise (≤45dB).
3. Custom Solutions
- Scalable Lengths: Sections per meter = 1000 ÷ 46 ≈ 21.7 sections/meter. Connectors sold separately.
Installation Guide & Maintenance
Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 46mm (pitch).
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 46 ≈ 43.5 sections) + K (π × 40mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 40mm to the internal height for 8kg/m loads.
- Bend Radius: Maintain ≥45mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris accumulation.
- Lubrication: Apply silicone grease annually (steel-reinforced design extends intervals).
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSDHE1?
| Feature | SONDA HXSDHE1 | Standard Mini Chains |
|---|---|---|
| Load Capacity | 8kg/m (heavy-duty reinforced) | 5–6kg/m |
| Material | Glass-filled nylon + steel | Standard polymers |
| Lead Time | 5–9 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 30% cheaper | Premium pricing |
Trusted in Precision Industries
- 300+ Industrial Installations: Used in CNC machining centers, robotic welding systems, and automotive assembly lines.
- Patented Innovations: Exclusive load-distribution design and modular connectivity.
- Versatile Use Cases:
- Electronics Manufacturing: Stabilizes micro-cables in PCB assembly lines.
- Medical Equipment: Compact solutions for diagnostic devices and lab automation.
The SONDA HXSDHE1 mini drag chain is a precision solution for industrial automation. With its small drag chain cable carrier design, tiny drag chain for CNC functionality, and robust 8kg/m load capacity, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for power, flexibility, and seamless motion.
