Internal Height 30mm Reinforced Bridge type cable drag chain Double-Side Opening / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD21 Reinforced Cable Drag Chain: Robust Bridge-Type Solutions for High-Load Applications
The SONDA HXSD21 reinforced cable drag chain is engineered for industrial automation requiring durability and precision. Featuring a reinforced cable chain bridge type design, this system supports cables up to 27mm in diameter and withstands loads of 30kg/m. Ideal for CNC machines, robotics, and conveyor systems,it combines rugged engineering with cost-effective flexibility. Below, we explore its technical specs, applications, and why it outperforms competitors.

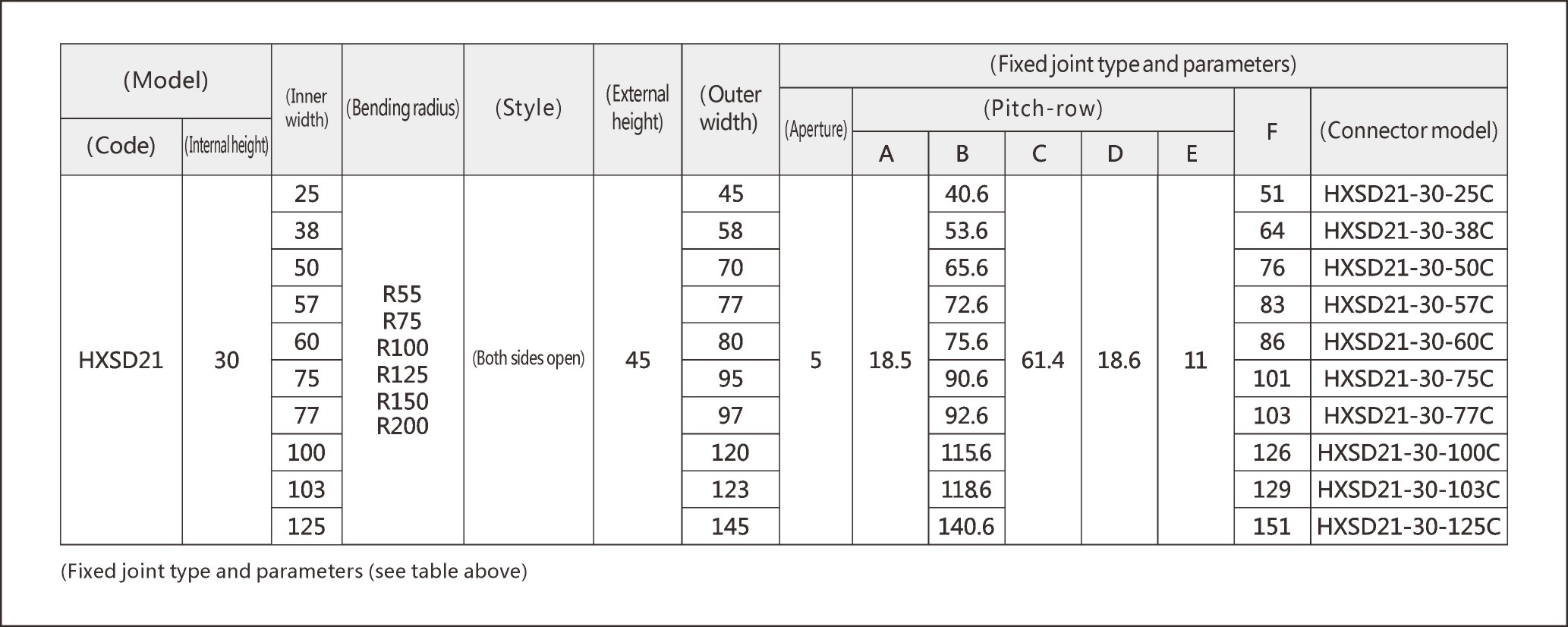

Key Features & Technical Specifications

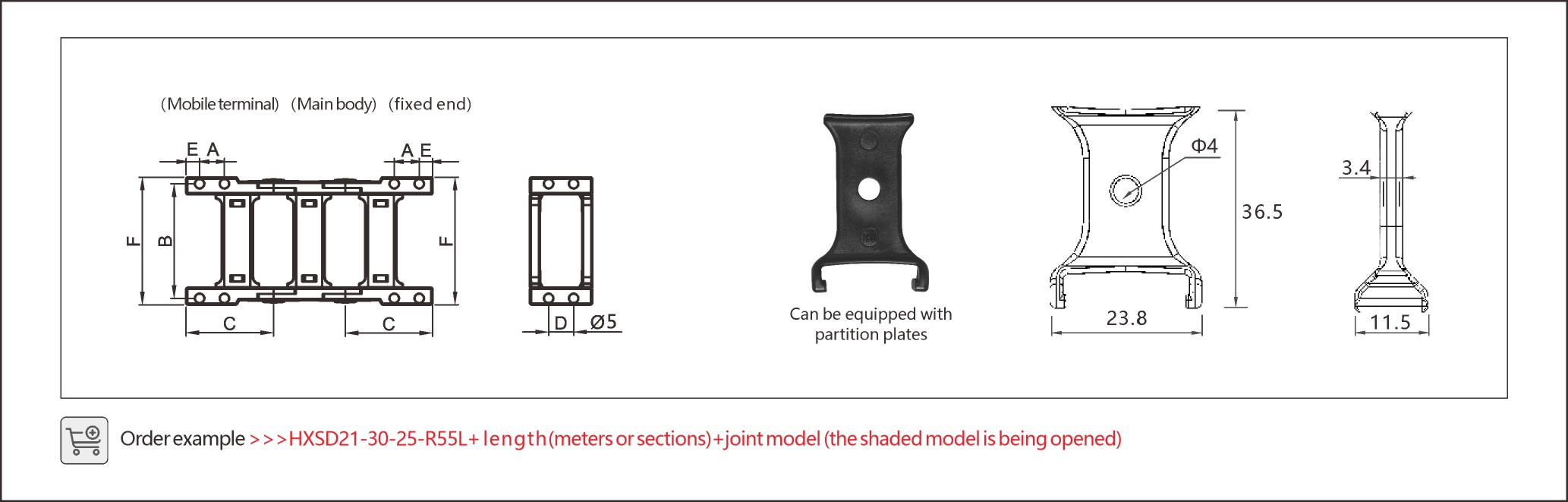

1. Reinforced Bridge-Type Design
- Structure: High-strength polymer with steel reinforcement for stability under extreme loads.
- Pitch: 46.3mm, with 22 knots per meter for smooth motion and reduced friction.

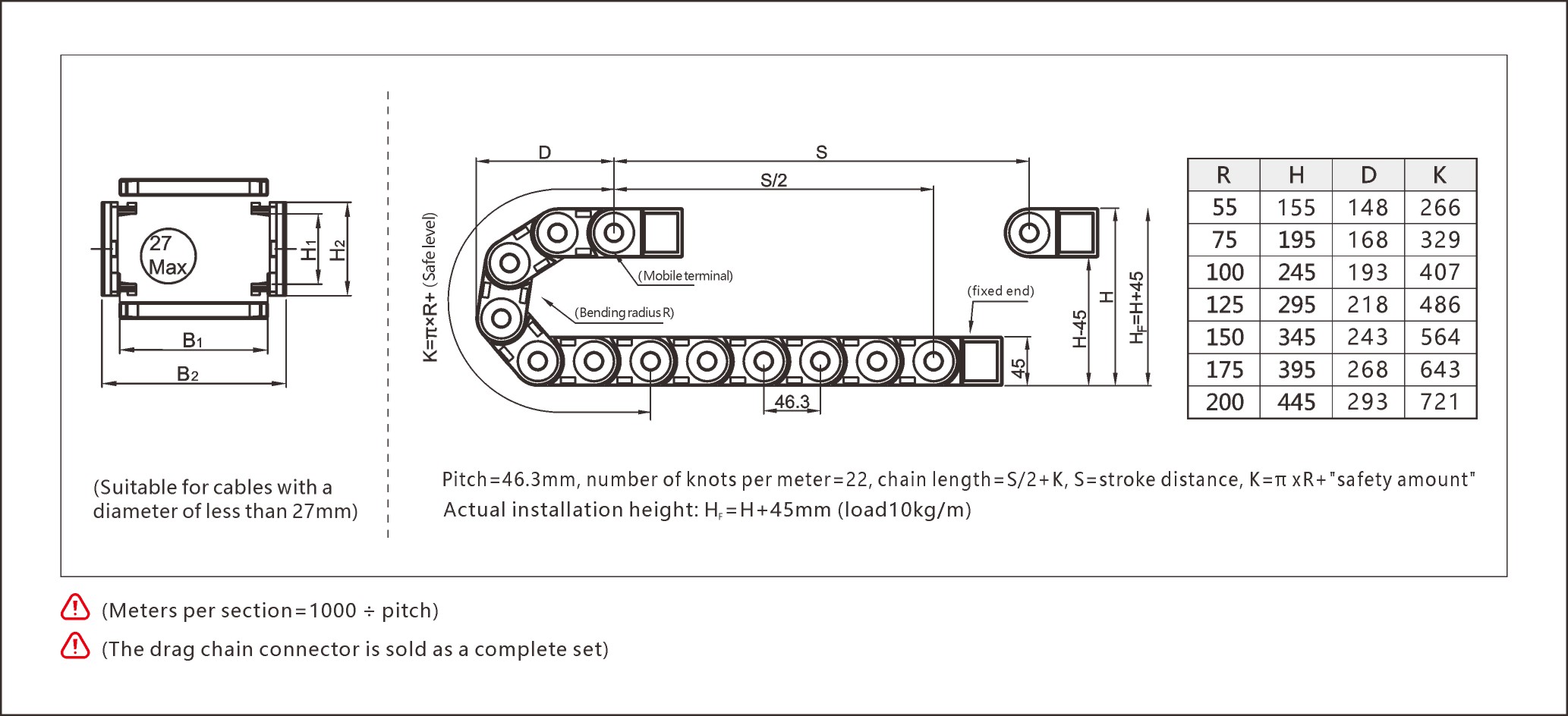

- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 45mm (load capacity: 30kg/m).
- Cable compatibility: Optimized for cables up to 27mm in diameter.
- Bending Radius: R = 45mm (fixed end), ensuring flexibility for tight turns.
2. Bridge-Type Cable Chain Applications
1. Heavy-Duty Machinery
- CNC machines: Stabilizes cables during rapid spindle movements.
- Conveyor systems: Resists wear in continuous motion applications.
- Load Capacity: Supports 30kg/m loads in automotive assembly or material handling.
2. Robotics & Automation
- Precision Stability: Secures cables during multi-axis movements in welding or painting robots.
- Space Efficiency: Slim profile minimizes interference in compact setups.
3. Custom Solutions
- Scalable Lengths: Sections per meter = 1000 ÷ pitch. Connectors sold as complete sets.
- Flexible Configurations: Tailored designs for unique machinery or small batches.
Installation Guide & Maintenance Tips
Step 1: Calculate Chain Length
Use the formula:
- Stroke distance (S) ÷ pitch (46.3mm) = Number of sections.
- Total length = (S/2) + K (add safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 46.3 ≈ 43.2 sections) + K (π × 45mm + safety).
Step 2: Optimize Installation
- Height Adjustment: Add 45mm to the internal height for 30kg/m loads.
- Bend Radius: Maintain ≥45mm at fixed ends to prevent kinking.
Step 3: Maintenance
- Monthly Inspections: Check for wear, misalignment, or debris.
- Lubrication: Apply silicone grease every 3 months.
- Replace Proactively: Every 2–3 years under heavy use.
Why Choose SONDA HXSD21?
While competitors offer similar products, SONDA leads with:
- Lower Costs: Up to 30% cheaper for equivalent specs.
- Faster Delivery: Ship within 7–10 days, even for customized orders.
- Flexible MOQs: Ideal for prototypes or small batches.
The SONDA HXSD21 reinforced cable drag chain is a powerhouse solution for industrial automation. With its bridge-type design, heavy-load capacity, and straightforward installation, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for reliability, priced for success.
