Internal Height 7mm Small bridge type drag chain non-openable / e-chain replacement / IGUS replacement
SONDA HXSD02 Mini Energy Chain: Compact Guide Rail System & Tiny Nylon Cable Chain for Lightweight Automation
The SONDA HXSD02 Mini Energy Chain is engineered for precision automation requiring lightweight, space-saving cable management. As a small cable chain guide rail system, it supports cables up to 3.5mm in diameter and withstands loads of 0.25kg/m. Ideal for medical devices, lab equipment, and micro-robotics, this tiny nylon cable chain combines durability, silence, and modular flexibility.

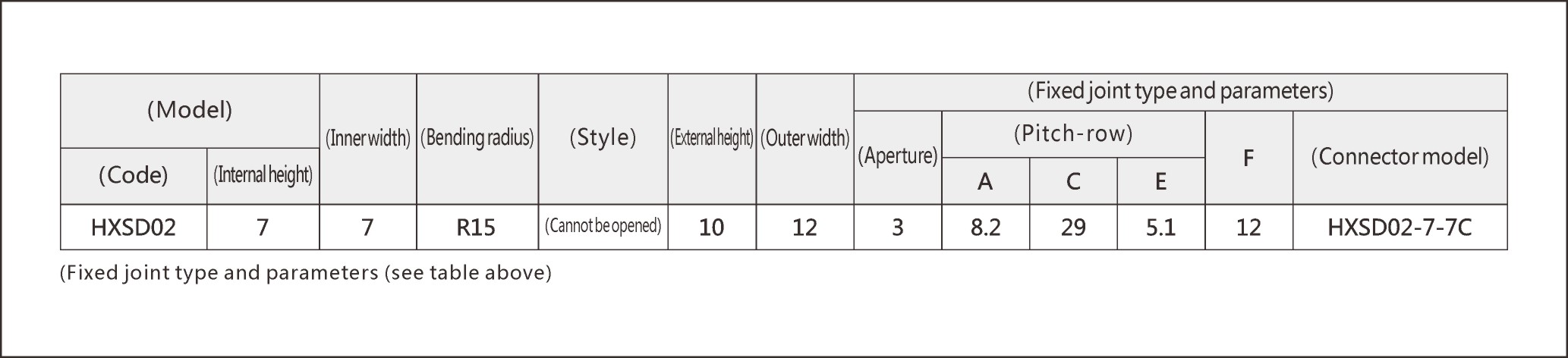

Key Features & Technical Specifications
1. Compact Nylon Design
- Material: Reinforced nylon with glass fiber for impact resistance and low friction (noise ≤42dB).
- Pitch: 17mm, with 59 knots per meter for stability in high-speed applications (up to 1.2m/s).
- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 10mm (load capacity: 0.25kg/m).
- Cable compatibility: Optimized for cables ≤3.5mm (power, data, sensor).
- Weight: Ultra-lightweight (12g/m) reduces system strain.
2. Applications & Benefits
1. Medical Devices & Lab Automation
- Space Efficiency: Slim profile (height: 10mm) fits MRI machines, microscopes, and diagnostic tools.
- Precision Stability: Maintains cable integrity during robotic pipetting or sample handling.
- Hygienic Design: Smooth, non-porous materials resist contamination.
2. Micro-Robotics & Electronics
- Tiny Nylon Cable Chain: Secures thin cables during rapid pick-and-place or assembly line movements.
- Dynamic Load Handling: Supports 0.25kg/m loads in semiconductor manufacturing or wearable tech.
3. Custom Solutions
- Modular Guide Rail System: Interchangeable sections (≈59 sections/meter) for easy repairs or expansions.
- Connectors: Sold as a complete set for seamless integration.

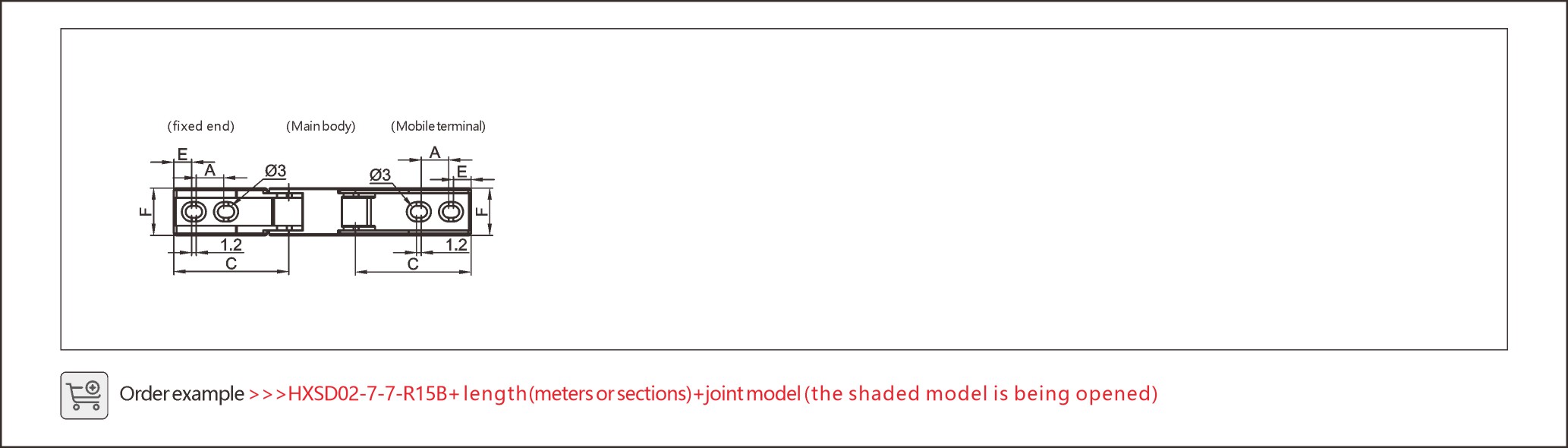

Installation Guide & Maintenance

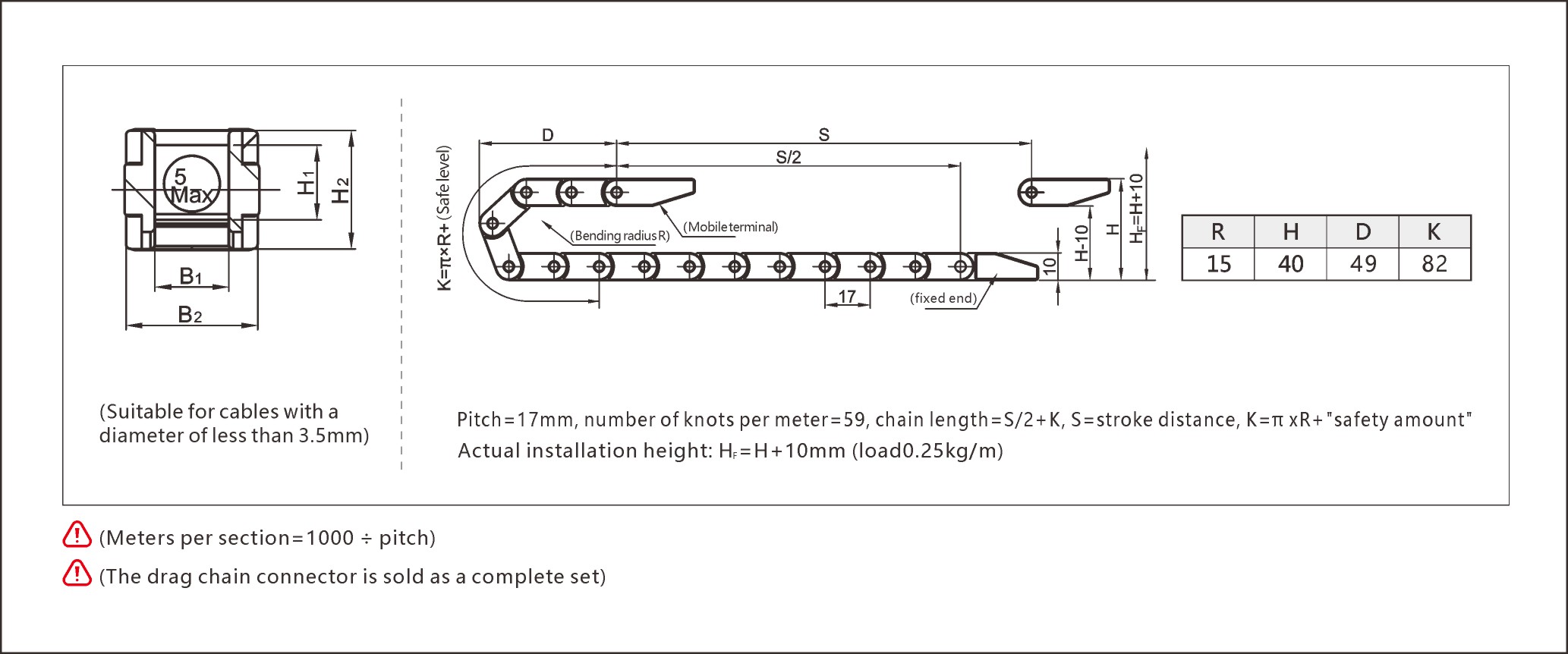

Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 17mm (pitch).
- Total length = (S/2) + K (add 10% safety margin for dynamic loads).
Example: For a 0.3-meter stroke:
(300 ÷ 17 ≈ 18 sections) + K (π × 10mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 10mm to the internal height for 0.25kg/m loads.
- Bend Radius: Maintain ≥12mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris.
- Lubrication: Apply silicone grease every 12 months (nylon’s self-lubricating properties extend intervals).
- Replace Proactively: Every 3–5 years under light use.
Why Choose SONDA HXSD02?
| Feature | SONDA HXSD02 | Standard Mini Chains |
|---|---|---|
| Load Capacity | 0.25kg/m (ultra-lightweight) | 0.1–0.2kg/m |
| Material | Glass-filled nylon | Standard polymers |
| Lead Time | 5–7 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 20% cheaper | Premium pricing |
Trusted in Precision Industries
- 150+ Medical Installations: Used in robotic surgery systems, lab automation, and diagnostic tools.
- Patented Innovations: Exclusive noise-reduction and modular connectivity designs.
- Versatile Use Cases:
- Wearable Tech: Flexible solutions for compact health monitors.
- Electronics Assembly: Stabilizes micro-cables in PCB manufacturing.
The SONDA HXSD02 Mini Energy Chain is a precision solution for compact automation. With its tiny nylon cable chain design, small cable chain guide rail system functionality, and ultra-lightweight profile, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for silence, speed, and small-scale success.
