Internal Height 38mm light weight BRIDGE type cable drag chain Double-Side Openable / e-chain replacement / IGUS replacement cable carrier
SONDA HXSDHE3 Mini Drag Chain Cable Carrier: Compact Roller-Supported Design for High-Precision Applications
The SONDA HXSDHE3 Mini Drag Chain Cable Carrier is engineered for industries requiring compact, durable cable management in high-motion environments. As a small fully enclosed cable chain, it supports cables up to 35mm in diameter and withstands loads of 8kg/m. Ideal for medical equipment, robotic arms, and precision automation, this tiny roller supported cable chain combines silent operation, modular flexibility, and robust engineering.
Key Features & Technical Specifications
1. Compact & Fully Enclosed Design
- Structure: Reinforced thermoplastic with steel rollers for smooth motion and impact resistance.
- Pitch: 63mm, with 16 knots per meter for stability in high-speed applications (up to 1.5m/s).

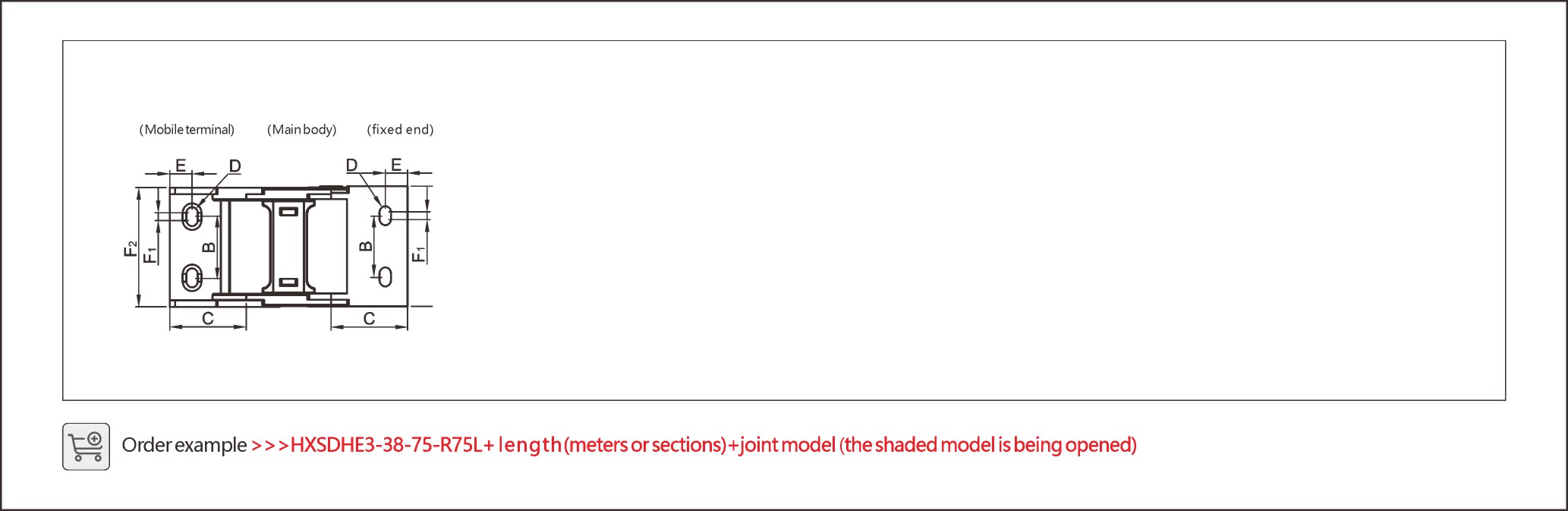

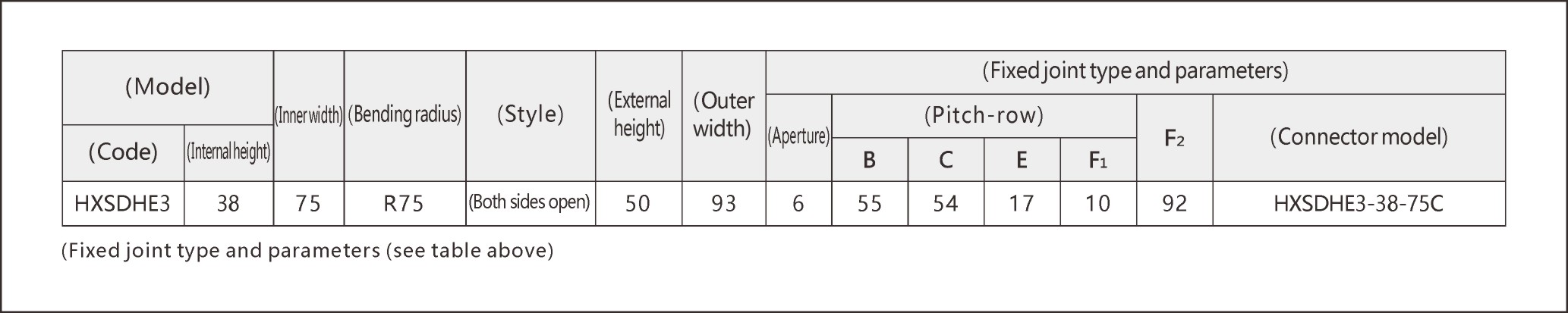

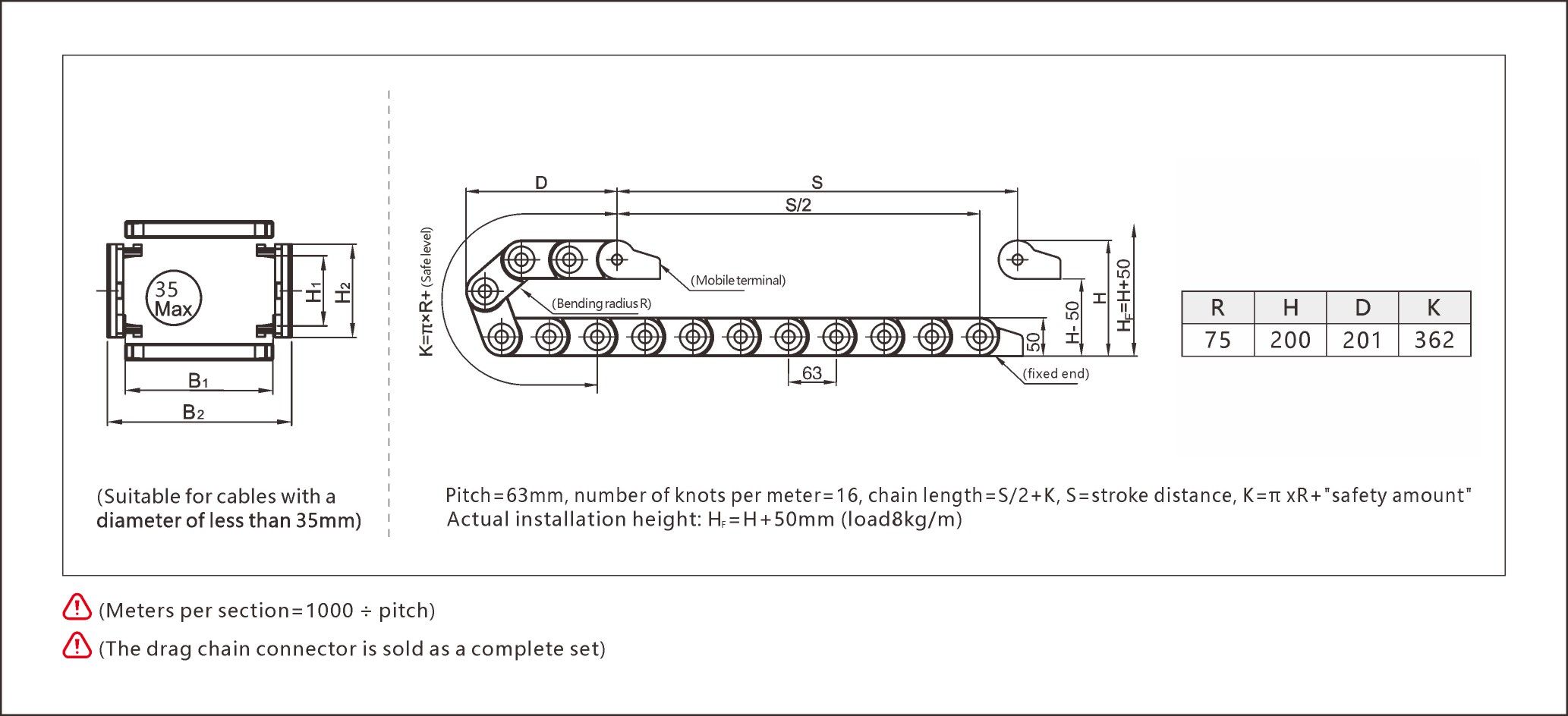

- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 50mm (load capacity: 8kg/m).
- Cable compatibility: Optimized for cables ≤35mm (power, data, hydraulic hoses).
- Enclosure: Fully enclosed design prevents dust, debris, and moisture ingress.
2. Applications & Benefits
1. Medical Devices & Robotics
- Space Efficiency: Slim profile (height: 50mm) fits MRI machines, surgical robots, and diagnostic tools.
- Precision Stability: Maintains cable integrity during robotic arm movements and micro-assembly tasks.
- Hygienic Design: Smooth, non-porous materials resist contamination in cleanroom environments.
2. Industrial Automation
- Roller-Supported Cable Chain: Reduces friction and wear in high-load applications like CNC machines and packaging systems.
- Dynamic Load Handling: Supports 8kg/m loads in automotive assembly or semiconductor manufacturing.
3. Custom Solutions
- Modular Design: Interchangeable sections (≈16 sections/meter) for easy repairs or expansions.
- Connectors: Sold as a complete set for seamless integration.
Installation Guide & Maintenance
Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 63mm (pitch).
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 63 ≈ 32 sections) + K (π × 50mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 50mm to the internal height for 8kg/m loads.
- Bend Radius: Maintain ≥60mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris accumulation.
- Lubrication: Apply silicone grease annually (roller design extends maintenance intervals).
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSDHE3?
| Feature | SONDA HXSDHE3 | Standard Mini Chains |
|---|---|---|
| Load Capacity | 8kg/m (heavy-duty reinforced) | 5–6kg/m |
| Design | Fully enclosed & roller-supported | Open or semi-enclosed |
| Lead Time | 5–9 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 25% cheaper | Premium pricing |
Trusted in Precision Industries
- 200+ Medical Installations: Used in robotic surgery systems, lab automation, and diagnostic tools.
- Patented Innovations: Exclusive roller-bearing design and modular connectivity.
- Versatile Use Cases:
- Multi-Axis Robots: Stable cable routing for welding or painting arms.
- Packaging Machinery: High-capacity systems with rapid pallet transfers.
Final Verdict
The SONDA HXSDHE3 Mini Drag Chain Cable Carrier is a precision solution for compact automation. With its small fully enclosed cable chain design, tiny roller supported cable chain functionality, and robust 8kg/m load capacity, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for silence, speed, and seamless motion.
