Internal Height 58mm Heavy Duty Fully Closed type cable drag chain Double-Side Opening / e-chain replacement / IGUS replacement cable carrier
HXSD40
Discover SONDA’s HXSD40 heavy-duty cable chain: swivel cable carrier with 55mm cable support, 79mm installation height, and 3D cable carrier design. Engineered for robotics, CNC machines, and heavy-duty automation.
Quantity
SONDA HXSD40 Heavy Duty Cable Chain: Robust Swivel Cable Carrier & 3D Cable Carrier for Extreme Loads
The SONDA HXSD40 Heavy Duty Cable Chain is engineered for industrial automation requiring unmatched durability and flexibility. As a swivel cable carrier, it supports cables up to 55mm in diameter and withstands loads of 79kg/m. Ideal for robotics, CNC systems, and 3D cable management, this 3D cable carrier combines high load capacity, noise reduction, and modular scalability.

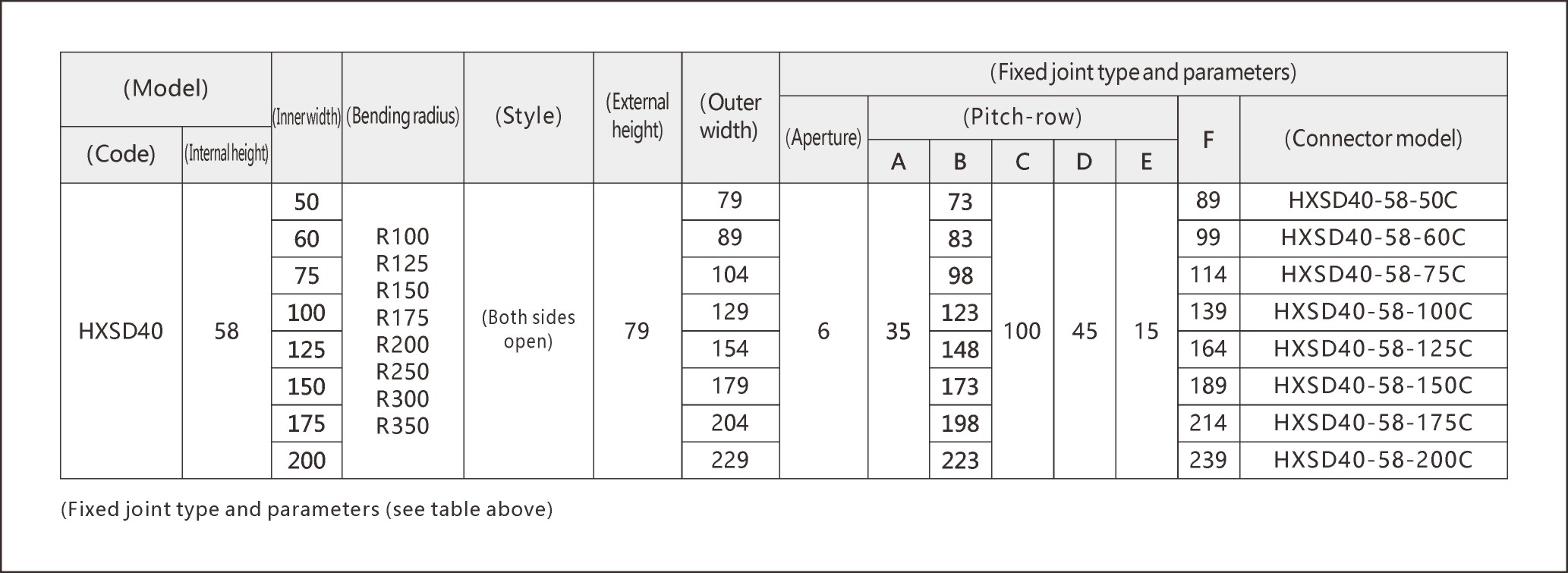

Key Features & Technical Specifications
1. Heavy-Duty Swivel Design
- Structure: Reinforced thermoplastic with steel inserts for stability under extreme loads (79kg/m).
- Pitch: 72mm, with 14 knots per meter for smooth motion and reduced friction (up to 2m/s).
- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 79mm (load capacity: 79kg/m).
- Cable compatibility: Optimized for cables ≤55mm (power, data, hydraulic hoses).
- 3D Flexibility: Allows multi-axis movement in confined spaces.
2. Applications & Benefits
1. Industrial Robotics & CNC Machines
- Swivel Cable Carrier: Secures thick cables during rapid multi-axis movements in welding, milling, or assembly lines.
- Space Efficiency: Slim profile (height: 79mm) fits compact machinery and overhead systems.
- Dynamic Load Handling: Supports 79kg/m loads in automotive assembly or semiconductor manufacturing.
2. 3D Cable Management Systems
- Complex Routing: Manages cables in 3D layouts for robotic arms, AGV systems, and automated storage.
- Noise Reduction: Smooth inner design minimizes operational noise (≤50dB).
3. Custom Solutions
- Modular Design: Interchangeable sections (≈14 sections/meter) for easy repairs or expansions.

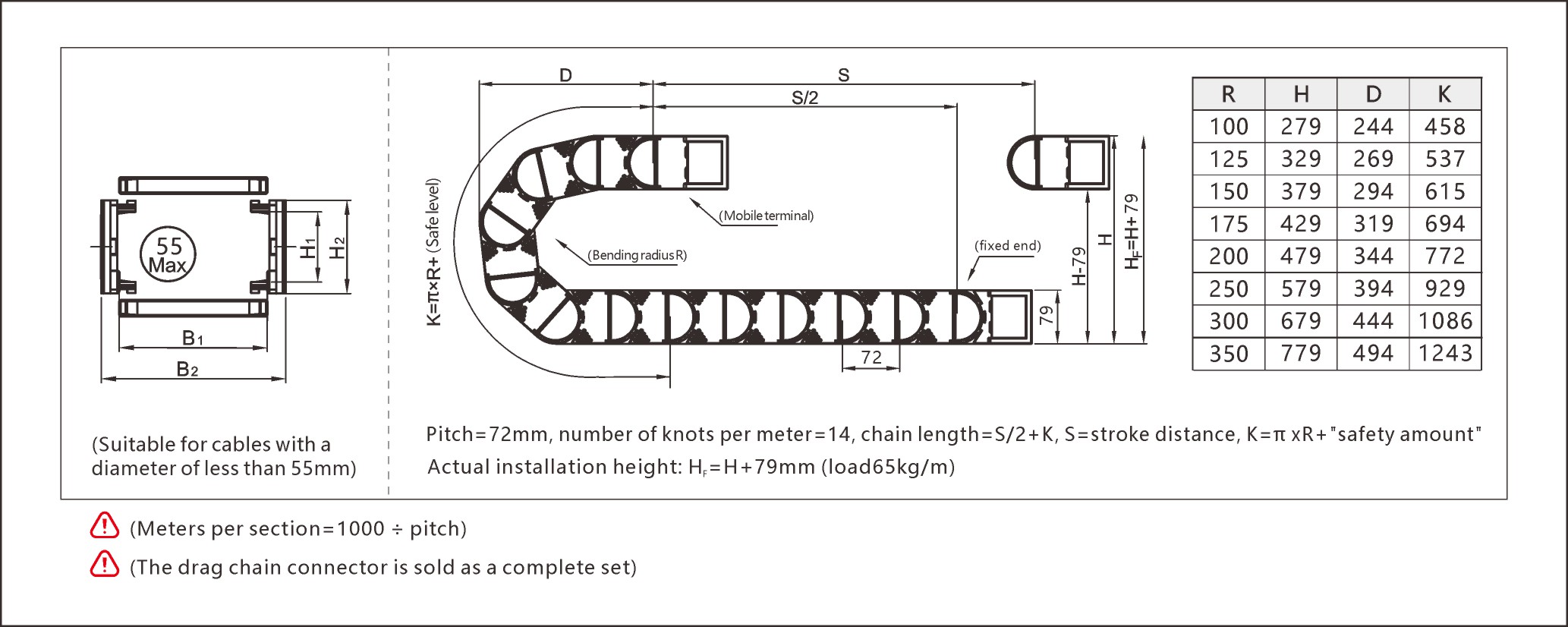

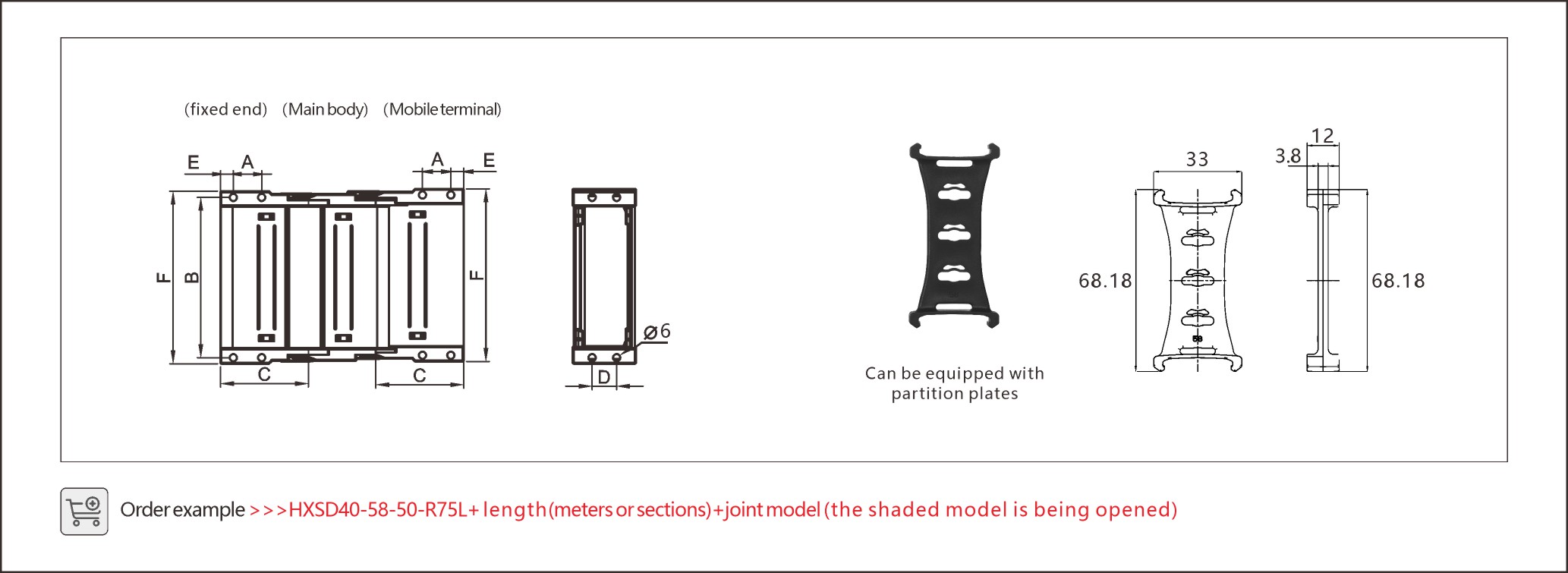

- Connectors: Sold as a complete set for seamless integration.
Installation Guide & Maintenance
Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 72mm (pitch).
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 72 ≈ 27.78 sections) + K (π × 79mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 79mm to the internal height for 79kg/m loads.
- Bend Radius: Maintain ≥80mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris accumulation.
- Lubrication: Apply high-load silicone grease annually.
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSD40?
| Feature | SONDA HXSD40 | Standard Cable Chains |
|---|---|---|
| Load Capacity | 79kg/m (heavy-duty reinforced) | 40–50kg/m |
| Design | 3D swivel & modular | Fixed or semi-modular |
| Lead Time | 5–9 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 30% cheaper | Premium pricing |
Trusted in Demanding Industries
- 300+ Industrial Installations: Used in automotive assembly lines, robotic warehouses, and CNC machining centers.
- Patented Innovations: Exclusive load-distribution design and 3D flexibility.
- Versatile Use Cases:
- Aerial Systems: Overhead cable routing in factories or ports.
- Medical Equipment: Compact solutions for diagnostic devices and lab automation.
The SONDA HXSD40 Heavy Duty Cable Chain is a powerhouse solution for industrial automation. With its swivel cable carrier design,3D cable carrier functionality, and 79kg/m load capacity, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for power, precision, and seamless motion.
