How to Use a Drag Chain: Easy Setup for Cables and CNC Machines

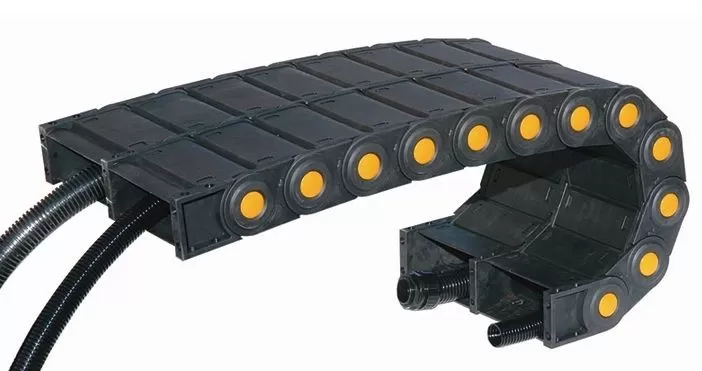

A drag chain is a key component in modern automation, designed to protect and organize cables that move constantly. Knowing how to use a drag chain properly helps ensure your equipment runs smoothly and avoids costly cable wear or downtime. Shengda provides durable and affordable drag chain systems that fit a wide range of industrial applications, including CNC machines and robotic arms.

Drag Chain Installation Guide

Before starting, measure the total movement distance of your machine to determine the correct drag chain length. The drag chain installation guide begins by fixing one end of the chain to a stable point near the machine’s power source. Then, attach the other end to the moving part of the machine. Make sure the bend radius is large enough to protect the cables from stress. Avoid sharp turns or tight curves, as these can reduce cable lifespan.

Drag Chain Setup for Cables

Proper drag chain setup for cables ensures efficient energy and signal transmission. First, lay cables flat inside the chain with enough space between them to avoid friction. Use separators for multiple cables or hoses. Always allow about 10–15% extra cable length to accommodate motion. Shengda’s chains are designed with internal dividers and smooth edges to prevent abrasion and ensure long-term reliability.

Using Drag Chain in CNC Machines

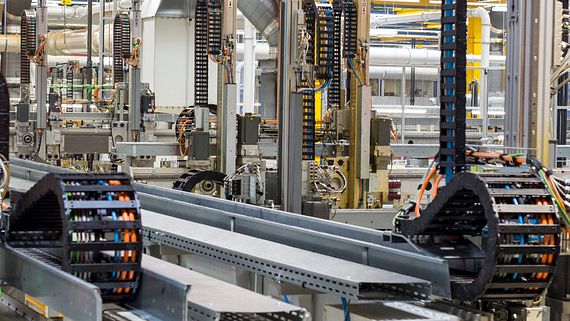

Using drag chain in CNC machines helps maintain stable cable performance during high-speed motion. The chain supports cables connected to spindles, motors, and sensors, preventing tangles and disconnections. Shengda’s chains are precision-engineered for smooth, silent operation, reducing vibration and extending cable life.

Robotic Arm Cable Management

In robotics, robotic arm cable management is critical. Drag chains help guide and protect cables as the robotic arm moves in multiple directions. Shengda’s flexible drag chains handle complex movements easily, keeping cables secure and organized.

Shengda Energy Chain vs Igus: Same Quality, More Flexibility

When comparing Shengda energy chain vs Igus, both provide excellent performance and reliability. However, Shengda stands out with:

• The same high-quality standards at a lower cost

• Faster delivery times to meet urgent demands

• Greater flexibility for small-batch or custom orders

This makes Shengda a preferred choice for companies that value efficiency, affordability, and customization.

Conclusion

Learning how to use a drag chain correctly is vital for safe and efficient machine operation. Whether you’re following a drag chain installation guide, setting up cables for CNC machines, or improving robotic arm cable management, Shengda offers durable and cost-effective solutions. With equal quality but faster service and lower prices than Igus, Shengda is the smart partner for industrial automation.
