Compact Cable Control for Space-Limited Automation

As automation equipment becomes smaller and more integrated, efficient cable management is no longer optional—it is essential. Machines with limited installation space require cable carriers that are strong, flexible, and precisely sized. The 30x10 drag chain is designed specifically for these challenges, offering reliable protection and smooth cable movement in compact systems where every millimeter matters.

With its slim internal dimensions and rectangular structure, this solution is ideal for guiding power, signal, and pneumatic lines in tight mechanical layouts. Compared to oversized cable carriers, a compact drag chain reduces unnecessary bulk while maintaining stable motion and long service life.

What Makes the 30x10 Drag Chain Unique

The 30x10 drag chain features a compact rectangular cable chain design that balances space efficiency with mechanical stability. Its narrow internal height and width allow it to fit easily into confined paths along sliders, linear rails, or small gantry systems.

Despite its slim profile, the chain maintains a controlled bending radius, helping prevent cable fatigue and internal abrasion. This makes it suitable for continuous-duty motion in light automation environments.

Benefits of a Compact Rectangular Cable Chain

A compact rectangular cable chain offers predictable cable movement while maximizing usable machine space. Unlike round or oversized carriers, its flat profile allows for cleaner installation along machine frames and enclosures.

This design supports organized cable separation, which reduces electromagnetic interference between power and signal cables—an important factor in precision automation and electronic control systems.

Narrow Profile Cable Routing for Small Machines

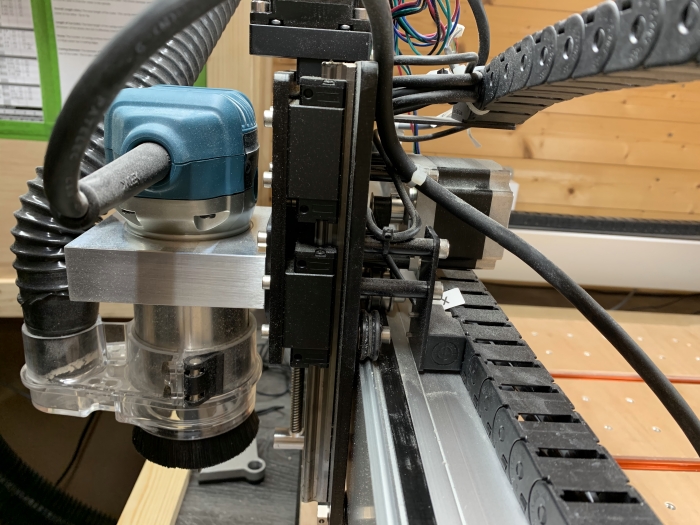

A narrow profile cable routing system is essential in applications such as desktop CNC machines, labeling equipment, pick-and-place units, and small robotic modules. These machines often operate in enclosed housings where cable clearance is limited.

By keeping cables aligned and elevated, the drag chain prevents snagging, twisting, or rubbing against sharp edges. This improves motion consistency and reduces unexpected downtime caused by cable wear.

Supporting Compact Automation Equipment Wiring

Effective compact automation equipment wiring improves both reliability and maintenance efficiency. A well-designed drag chain allows technicians to inspect, replace, or upgrade cables without disassembling major machine components.

The modular link structure of compact drag chains also makes length adjustment easy, supporting customized machine layouts and future system expansion.

Why Injection Molded Plastic Cable Chains Matter

An injection molded plastic cable chain provides consistent quality, smooth surfaces, and high dimensional accuracy. Compared to 3D-printed or assembled alternatives, injection molding ensures uniform strength across every link.

High-performance engineering plastics offer excellent wear resistance, low friction, and stable operation under repeated motion cycles. This results in longer service life and reduced maintenance costs in automated systems.

A Smart Choice for Space-Efficient Automation

By combining a slim profile, controlled motion, and durable materials, the 30x10 drag chain delivers a practical cable management solution for modern compact machines. For engineers designing space-limited systems, a compact rectangular cable chain is a reliable foundation for safe, organized, and efficient automation.
