Internal Height 80mm Heavy Duty BRIDGE type cable drag chain Both Side Openable / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD47 igus Energy Chain: Modular Cable Track & Heavy-Duty Drag Chain for Extreme Loads
The SONDA HXSD47 igus Energy Chain is engineered for industrial automation requiring unmatched durability and modularity. As a heavy-duty cable drag chain system, it supports cables up to 75mm in diameter and withstands loads of 83kg/m. Ideal for robotics, CNC machines, and conveyor systems, its modular cable track design ensures flexibility, scalability, and cost-effective performance in high-stress environments.

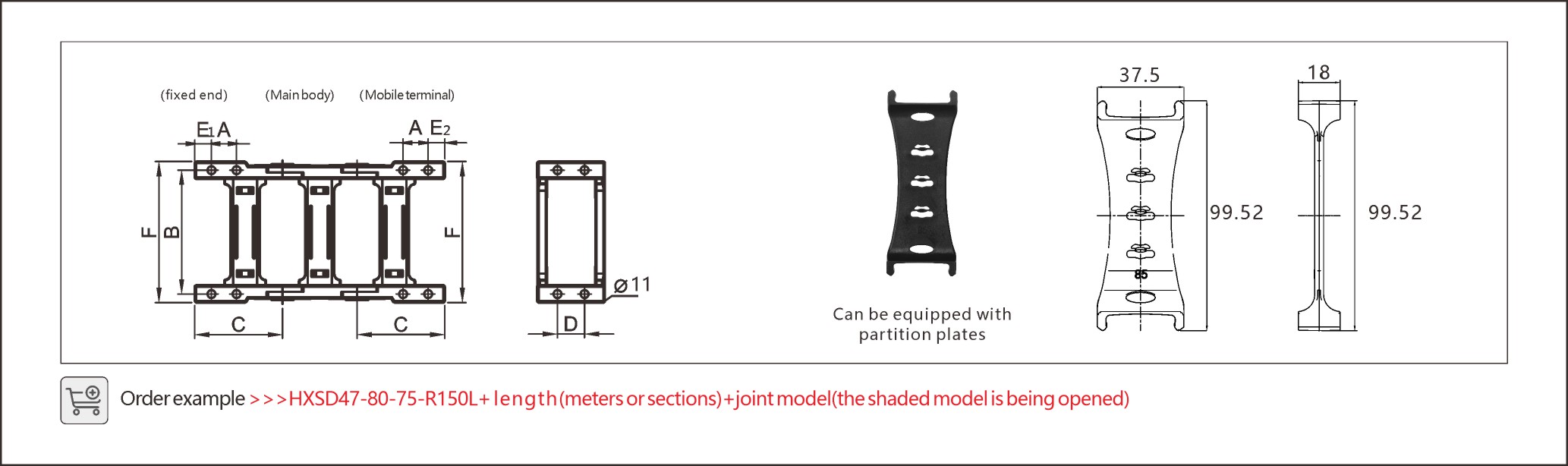

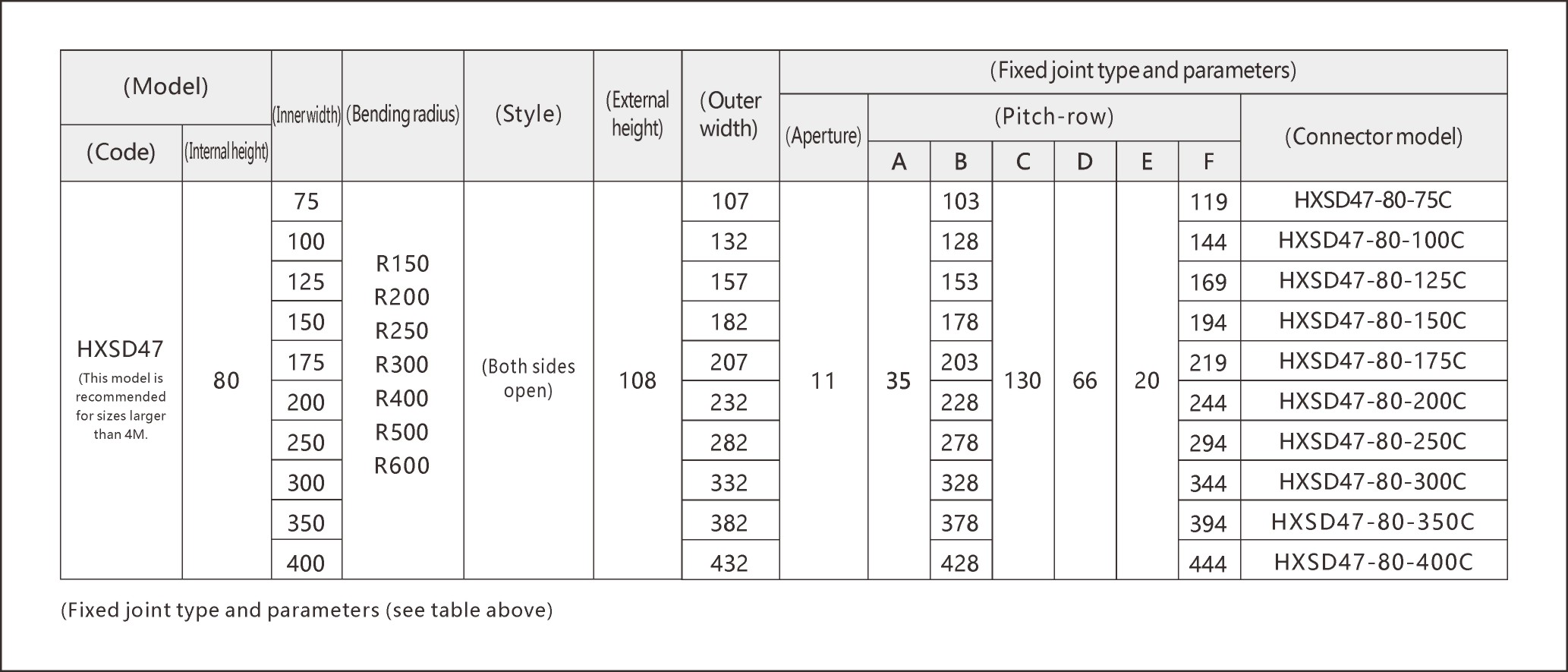

Key Features & Technical Advantages
1. Heavy-Duty Modular Design
- Structure: Reinforced thermoplastic with steel inserts for stability under extreme loads (83kg/m).
- Pitch: 111mm, with 9 knots per meter for smooth motion and reduced friction in high-speed applications.
- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 108mm (load capacity: 83kg/m).
- Cable compatibility: Optimized for cables up to 75mm in diameter.
- Modularity: Interchangeable sections for quick repairs or system expansions.
2. Applications & Benefits
1. Heavy-Duty Manufacturing
- Robotics & CNC Machines: Stabilizes thick cables during rapid tool changes and multi-axis movements.
- Conveyor Systems: Resists wear in automotive assembly, logistics, and material handling.
- Load Capacity: Supports 83kg/m loads in heavy industry setups (e.g., steel processing).
2. Space Efficiency & Scalability
- Slim Profile: Height of 108mm minimizes footprint in compact machinery.
- Modular Cable Track: Customize lengths using sections (≈9 sections/meter). Connectors sold separately.
3. Cost-Effective Durability
- Long Lifespan: Resists abrasion and corrosion, reducing replacement frequency.
- Competitive Pricing: Up to 25% cheaper than igus equivalents with equivalent specs.
Installation Guide & Maintenance Tips

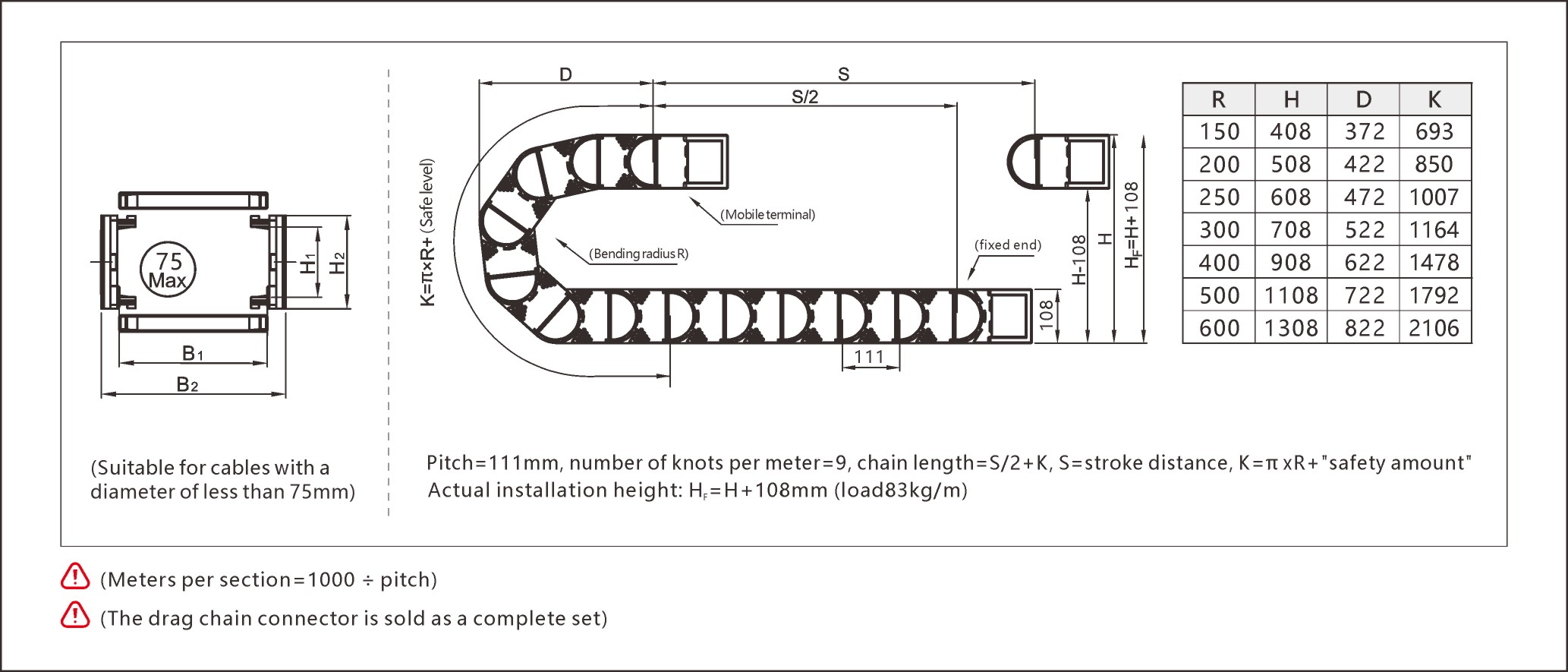

Step 1: Calculate Chain Length
Use the formula:
- Stroke distance (S) ÷ pitch (111mm) = Number of sections.
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 3-meter stroke:
(3000 ÷ 111 ≈ 27 sections) + K (π × 108mm + safety).
Step 2: Optimize Installation
- Height Adjustment: Add 108mm to the internal height for 83kg/m loads.
- Bend Radius: Maintain ≥110mm at fixed ends to prevent kinking.
Step 3: Maintenance
- Monthly Inspections: Check for wear, misalignment, or debris.
- Lubrication: Apply silicone grease annually (heavy-duty design reduces friction).
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSD47?
| Feature | SONDA HXSD47 | Competitors |
|---|---|---|
| Load Capacity | 83kg/m (heavy-duty reinforced) | 60–70kg/m |
| Modularity | Interchangeable sections | Welded designs |
| Lead Time | 7–10 days (custom orders) | 10–14 days |
| Cost | Up to 25% cheaper | Standard pricing |
Global Trust & Applications
- 500+ Industrial Clients: Trusted by Fortune 500 firms in automotive, aerospace, and electronics.
- Patented Innovations: 20+ patents for modular connectivity and load distribution.
- Versatile Use Cases:
- Robotics: Stable cable routing for welding arms and painting systems.
- Logistics: High-capacity conveyor systems with rapid pallet transfers.
Final Verdict
The SONDA HXSD47 igus Energy Chain is a powerhouse solution for extreme industrial demands. With its modular cable track design,80mm max heavy duty cable drag chain, and 83kg/m durability, it outperforms competitors in strength and value.
Upgrade your systems with SONDA—engineered for power, flexibility, and future growth.
