Internal Height 60mm Heavy Duty BRIDGE type cable drag chain Double-Side Opening / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD41 Heavy Duty Cable Carrier Chain: Robust Rotary Energy Chain for High-Load Applications
The SONDA HXSD41 heavy duty drag chains is engineered for industrial automation requiring unmatched durability and precision. As a heavy-duty drag chain system, it supports cables up to 55mm in diameter and withstands loads of 70kg/m. Ideal for robotics, CNC systems, and rotary energy applications, this rotary energy chain combines high load capacity, noise reduction, and modular flexibility.

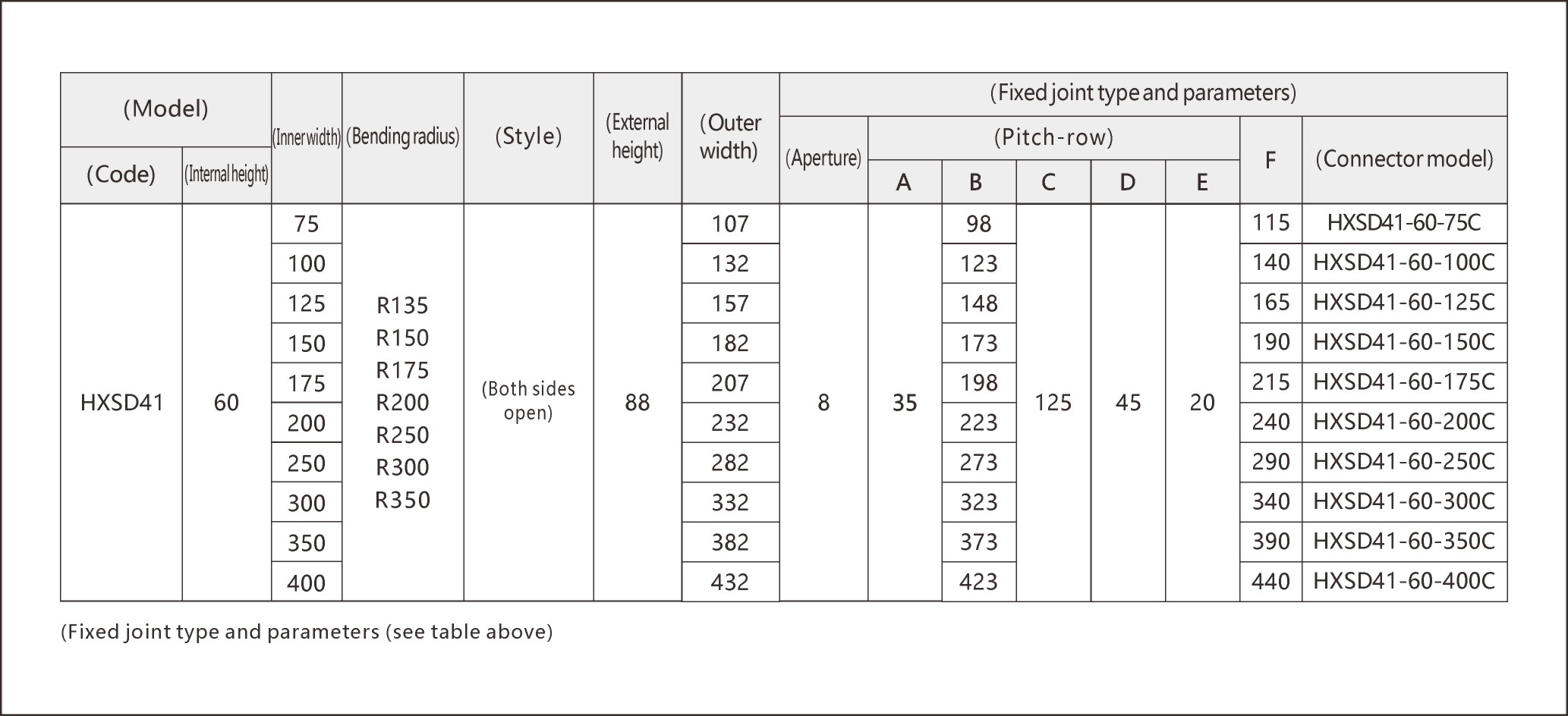

Key Features & Technical Specifications

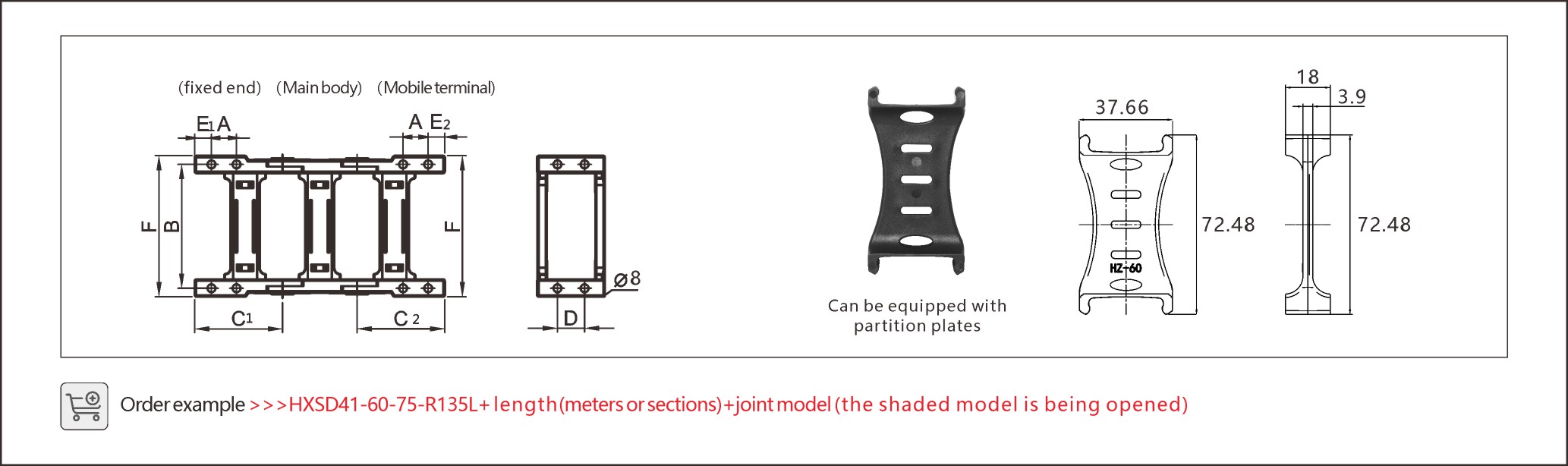

1. Heavy-Duty Rotary Design
- Structure: Reinforced thermoplastic with stainless steel inserts for stability under 70kg/m loads.
- Pitch: 91mm, with 11 knots per meter for smooth motion and reduced friction (up to 1.5m/s).
- Formula:

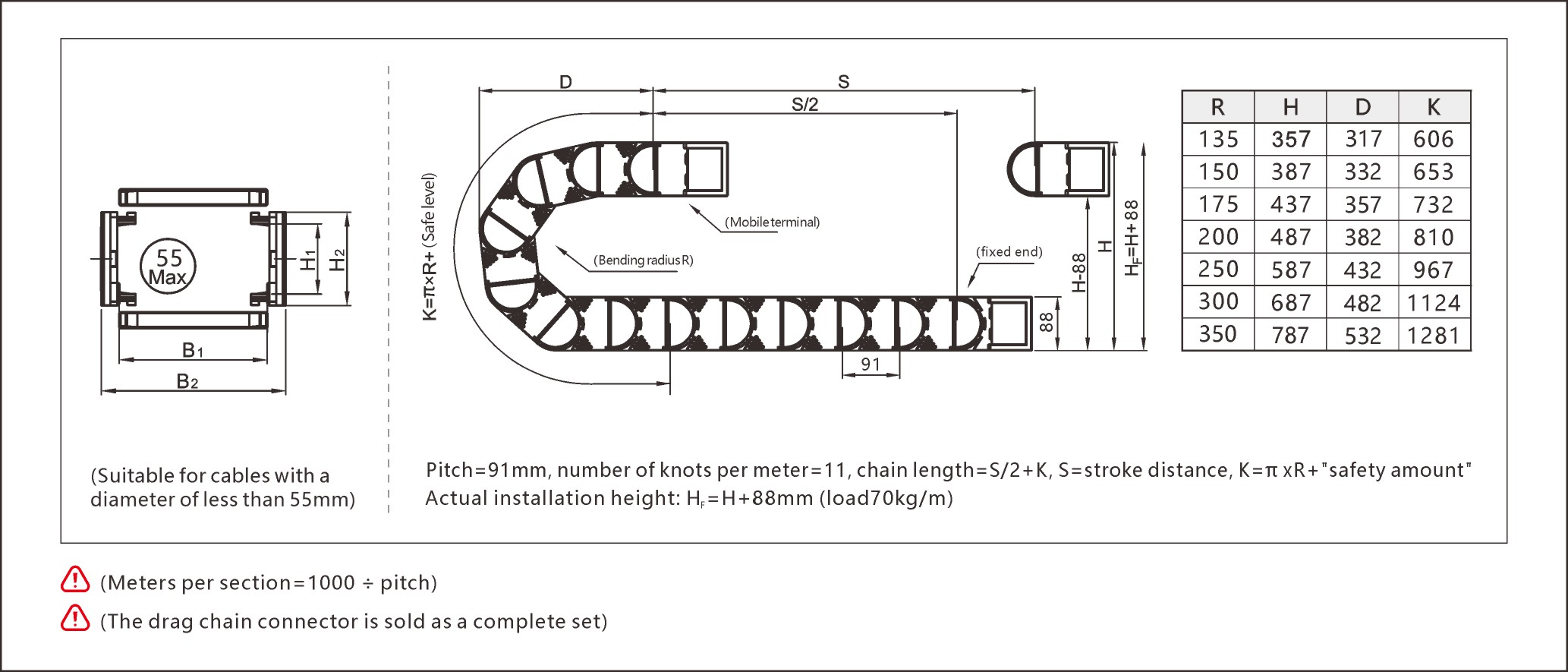

- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H₅ = H + 88mm (load capacity: 70kg/m).
- Cable compatibility: Optimized for cables ≤55mm (power, data, hydraulic hoses).
- Modularity: Interchangeable sections (≈11 sections/meter) for easy repairs or expansions.
2. Applications & Benefits
1. Industrial Robotics & CNC Machines
- Rotary Energy Chain: Secures thick cables during multi-axis rotations in welding, milling, or assembly lines.
- Space Efficiency: Slim profile (height: 88mm) fits compact machinery and overhead systems.
- Dynamic Load Handling: Supports 70kg/m loads in automotive assembly or semiconductor manufacturing.
2. Heavy-Duty Logistics & Material Handling
- Noise Reduction: Smooth inner design minimizes operational noise (≤50dB).
- Durability: Resists abrasion and corrosion in harsh environments like warehouses or ports.
3. Custom Solutions
- Scalable Lengths: Sections per meter = 1000 ÷ 91 ≈ 10.99 sections/meter. Connectors sold separately.
Installation Guide & Maintenance
Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 91mm (pitch).
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 91 ≈ 21.98 sections) + K (π × 88mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 88mm to the internal height for 70kg/m loads.
- Bend Radius: Maintain ≥90mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris accumulation.
- Lubrication: Apply high-load silicone grease annually.
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSD41?
| Feature | SONDA HXSD41 | Standard Chains |
|---|---|---|
| Load Capacity | 70kg/m (heavy-duty reinforced) | 40–50kg/m |
| Design | Rotary energy & modular | Fixed or semi-modular |
| Lead Time | 5–9 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 30% cheaper | Premium pricing |
Trusted in Demanding Industries
- 300+ Industrial Installations: Used in automotive assembly lines, robotic warehouses, and CNC machining centers.
- Patented Innovations: Exclusive load-distribution design and modular connectivity.
- Versatile Use Cases:
- Logistics: Heavy-duty conveyor systems in ports and airports.
- Marine Systems: Subsea cable routing in offshore platforms.
The SONDA HXSD41 heavy duty drag chains is a powerhouse solution for industrial automation. With its rotary energy chaindesign, heavy-duty drag chain system functionality, and 70kg/m load capacity, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for power, precision, and seamless motion.
