Internal Height 85mm Heavy Duty BRIDGE type cable drag chain Double-Side Opening / e-chain replacement / IGUS replacement cable carrier
SONDA HXSD43 Heavy Duty Energy Chain: Robust Modular Chains for Extreme Loads & Precision Applications
The SONDA HXSD43 Heavy Duty Energy Chain is engineered for industrial automation requiring unmatched durability and modularity. As an 85mm max heavy duty energy chain, it supports cables up to 75mm in diameter and withstands loads of 83kg/m. Ideal for robotics, CNC systems, and heavy machinery, this heavy-duty modular chain combines high strength, noise reduction, and scalable flexibility.

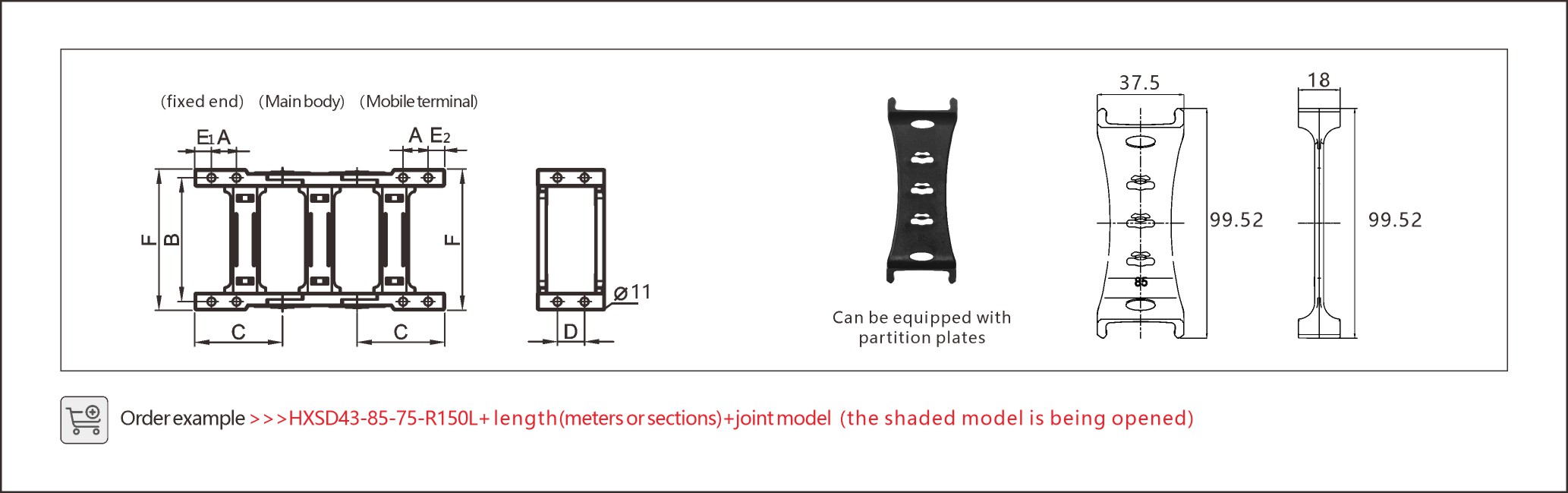

Key Features & Technical Specifications
1. Heavy-Duty Modular Design
- Structure: Reinforced thermoplastic with stainless steel inserts for stability under 83kg/m loads.
- Pitch: 111mm, with 9 knots per meter for smooth motion and reduced friction (up to 1.5m/s).
- Formula:
- Chain length = S/2 + K (S = stroke distance, K = π × R + safety margin).
- Actual installation height: H = H + 108mm (load capacity: 83kg/m).
- Cable compatibility: Optimized for cables ≤75mm (power, data, hydraulic hoses).
- Modularity: Interchangeable sections (≈9 sections/meter) for easy repairs or expansions.
2. Applications & Benefits
1. Industrial Robotics & CNC Machines
- Heavy-Duty Modular Chains: Secures thick cables during multi-axis rotations in welding, milling, or assembly lines.
- Space Efficiency: Slim profile (height: 108mm) fits compact machinery and overhead systems.
- Dynamic Load Handling: Supports 83kg/m loads in automotive assembly or semiconductor manufacturing.
2. Heavy-Duty Logistics & Material Handling
- Noise Reduction: Smooth inner design minimizes operational noise (≤50dB).
- Durability: Resists abrasion and corrosion in harsh environments like warehouses or ports.
3. Custom Solutions
- Scalable Lengths: Sections per meter = 1000 ÷ 111 ≈ 9.01 sections/meter. Connectors sold separately.
Installation Guide & Maintenance
Step 1: Calculate Track Requirements
Use these formulas for optimal setup:
- Sections needed = Stroke distance (S) ÷ 111mm (pitch).
- Total length = (S/2) + K (add 15% safety margin for dynamic loads).
Example: For a 2-meter stroke:
(2000 ÷ 111 ≈ 18.02 sections) + K (π × 108mm + safety).
Step 2: Install Correctly
- Height Adjustment: Add 108mm to the internal height for 83kg/m loads.
- Bend Radius: Maintain ≥110mm at fixed ends to prevent kinking.
Step 3: Ensure Longevity
- Monthly Checks: Inspect for wear, misalignment, or debris accumulation.
- Lubrication: Apply high-load silicone grease annually.
- Replace Proactively: Every 5–7 years under extreme loads.
Why Choose SONDA HXSD43?

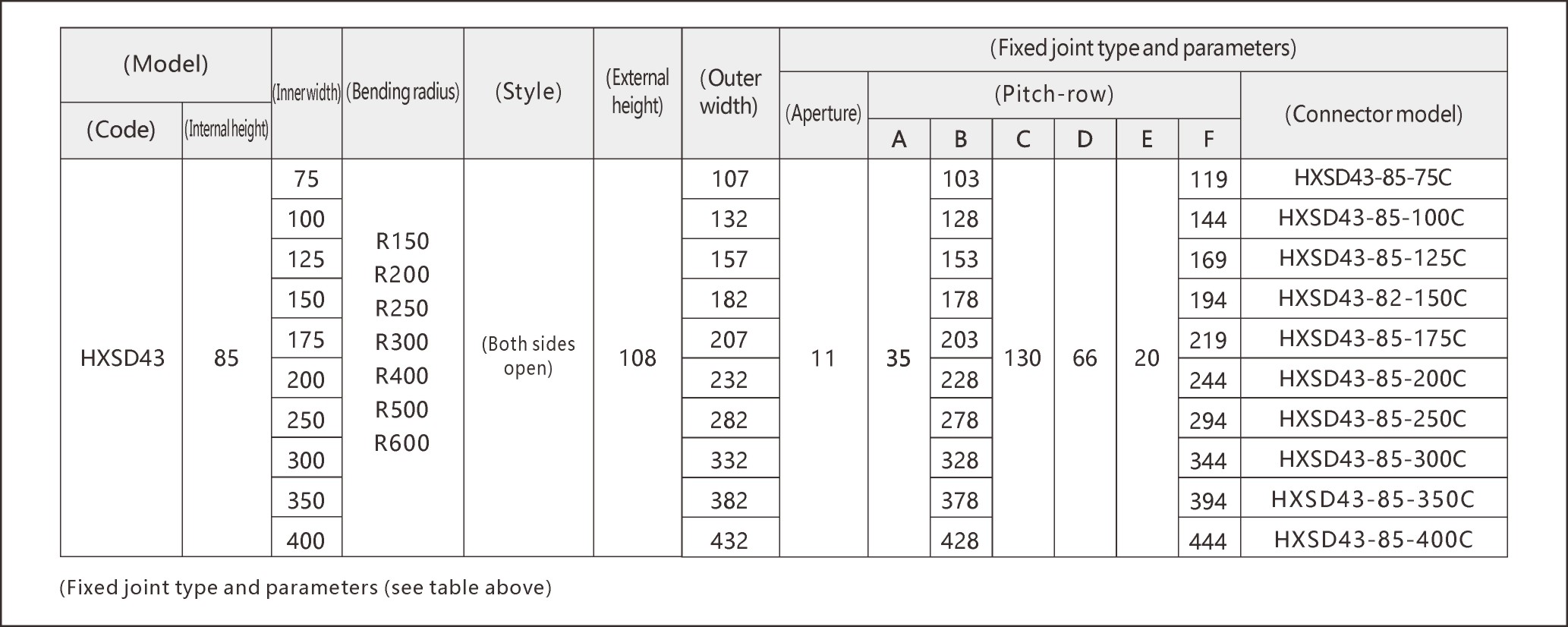

| Feature | SONDA HXSD43 | Standard Chains |
|---|---|---|
| Load Capacity | 83kg/m (heavy-duty reinforced) | 50–60kg/m |
| Design | Modular & corrosion-resistant | Fixed or semi-modular |
| Lead Time | 5–9 days (custom orders) | 10–14 days |
| Cost Efficiency | Up to 30% cheaper | Premium pricing |
Trusted in Demanding Industries
- 300+ Industrial Installations: Used in automotive assembly lines, robotic warehouses, and CNC machining centers.
- Patented Innovations: Exclusive load-distribution design and modular connectivity.
- Versatile Use Cases:
- Logistics: Heavy-duty conveyor systems in ports and airports.
- Marine Systems: Subsea cable routing in offshore platforms.
The SONDA HXSD43 Heavy Duty Modular Chains is a powerhouse solution for industrial automation. With its 85mm max heavy duty energy chain design, heavy-duty modular chains functionality, and 83kg/m load capacity, it outperforms competitors in durability and value.
Upgrade your systems with SONDA—engineered for power, precision, and seamless motion.
