Smart Cable Carrier Design for Modern Automation

Understanding Cable Carrier Design and Its Impact on Performance

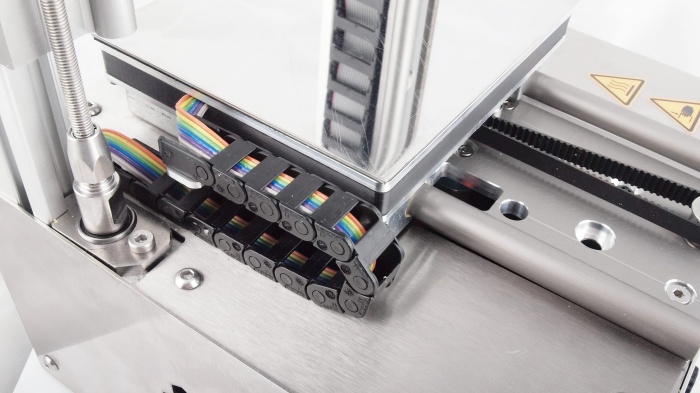

A well-engineered cable carrier design is crucial for ensuring the safe and efficient operation of automated systems. Whether it’s robotics, CNC machinery, or conveyor automation, the cable chain must handle dynamic movement, high speed, and long service life. By optimizing the design, engineers can significantly enhance durability, reduce downtime, and simplify maintenance.

Cable carriers, also known as drag chains or energy chains, are designed to guide and protect cables and hoses that move in cycles. Modern designs focus on flexibility, load capacity, and resistance to wear and environmental stress.

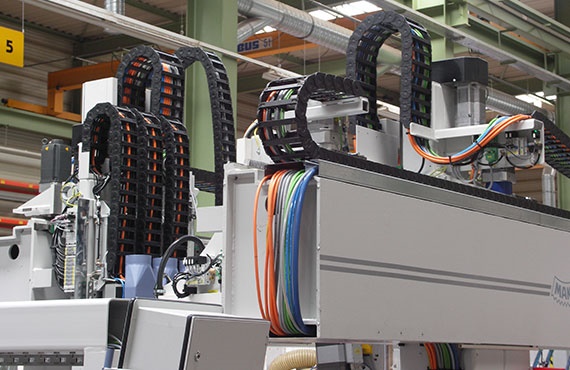

Optimizing Flexible Cable Chain Structure

A flexible cable chain structure allows smoother motion and reduced stress on cables during repetitive movement. These chains are made from materials like reinforced plastic or aluminum to provide both strength and lightweight performance. Their modular design enables quick assembly and replacement, making maintenance far easier than traditional enclosed systems.

Flexible designs also adapt to a variety of applications—from small-scale 3D printers to large industrial cranes—ensuring that each cable and hose maintains proper alignment and bending radius. The result is greater cable longevity and overall machine reliability.

Cable Chain Layout Optimization for Efficiency

Proper cable chain layout optimization is a key factor in achieving high system efficiency. The layout determines how cables bend, flex, and interact with each other. Poor layout can cause premature wear, noise, or even cable breakage.

Engineers today use digital modeling tools to simulate different layouts, allowing them to optimize space, minimize vibration, and enhance load distribution. An optimized layout not only reduces maintenance costs but also improves energy transfer stability and machine precision.

Shengda Energy Chain vs Igus: The Smart Choice

When comparing Shengda Energy Chain vs Igus, many users find that Shengda delivers equal quality at a lower price point. In addition, Shengda offers faster lead times, more flexible small-batch orders, and custom cable carrier design options—making it an excellent choice for OEMs and integrators looking for value without compromising performance.

Whether you’re designing a universal cable carrier system or upgrading existing machinery, Shengda provides reliable solutions that balance strength, flexibility, and cost-effectiveness.

By focusing on advanced cable carrier design, flexible cable chain structure, and layout optimization, manufacturers can maximize operational efficiency while keeping maintenance simple and affordable—especially with Shengda’s competitive and customizable product line.
