Cable Drag Chain 10x15: A Compact Solution for Small Automation Systems

If you are searching for cable drag chain 10x15, you are very likely already working on a real project—not just browsing. This size is commonly used when machine space is limited, but cables still need reliable protection during repeated movement.

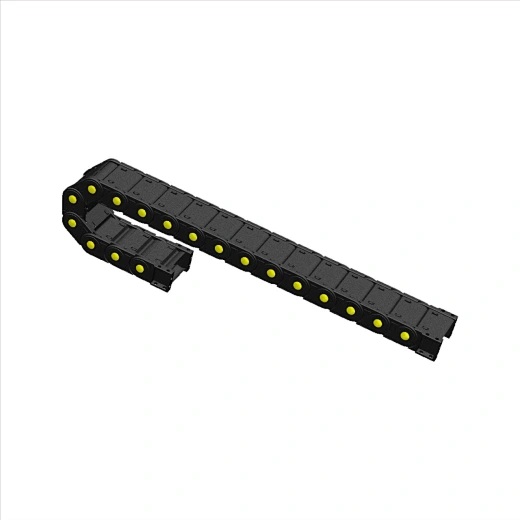

In most cases, 10x15 refers to the inner size: 10 mm height × 15 mm width. It is designed for small power cables, signal wires, and sensor lines used in compact CNC machines, automation equipment, and light-duty motion systems. Choosing the correct size at this stage can save you time, cost, and installation trouble later.

Typical Applications of Cable Drag Chain 10x15

A small cable drag chain for CNC and automation is especially useful when machines are compact but operate continuously. The 10x15 size is often selected for:

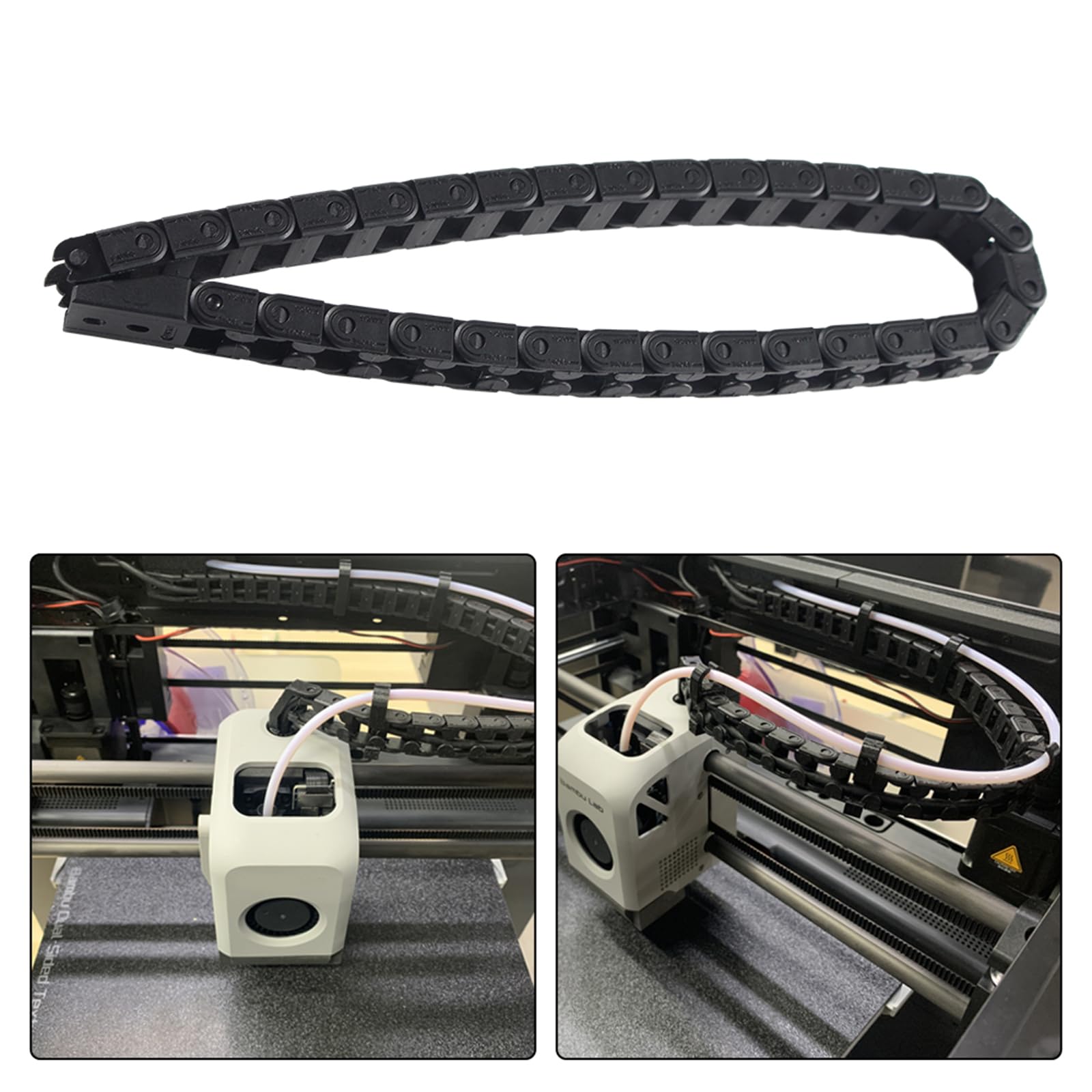

• Desktop CNC routers and engraving machines

• Small automation modules and test rigs

• 3D printers and laser marking machines

• Pick-and-place or linear slide units

• Compact robotic or motion platforms

In these applications, cables are constantly moving back and forth. Without proper guidance, cables may bend randomly, rub against sharp edges, or get pulled over time. A correctly sized cable drag chain 10x15 keeps cables moving in a controlled path, reducing wear and improving machine stability.

Key Technical Features of 10x15 Cable Drag Chain

Although it is a small-size drag chain, the 10x15 model is designed for durability and long service life. Below is a typical reference specification:

The modular structure allows users to add or remove links easily. This is especially helpful for OEMs and system integrators who need flexible lengths without redesigning the entire cable layout.

Why Inner Size Matters More Than Outer Size

One common mistake buyers make is focusing only on the outer dimensions. For a 10x15 cable drag chain inner size, what really matters is how comfortably your cables fit inside.

You should always consider:

• Total diameter of all cables combined

• Number of cables running together

• Required bending radius during movement

If cables are packed too tightly, friction increases and cable life is reduced. If the chain is too large, it wastes space and complicates installation. Selecting the correct inner size ensures smooth cable movement and long-term reliability.

Custom Length and OEM Supply from Shengda Energy Chain

As a custom length 10x15 energy chain supplier, Shengda Energy Chain supports both standard products and tailored solutions. Whether you need a short chain for a prototype or stable supply for mass production, we can match your requirements.

Compared with brands like igus, Shengda Energy Chain offers:

• Comparable functional quality

• More competitive pricing

• Shorter production and delivery time

• Flexible MOQ, suitable for small or trial orders

• Easy OEM and customization support

This makes Shengda a practical choice for customers who want reliable products without high brand premiums or long lead times.

Turn Your Search into a Practical Solution

If you are currently evaluating cable drag chain 10x15 and want to make sure it fits your cables and application, we’re ready to help.

? Send us your cable diameter, quantity, and travel length
? Ask for drawings, samples, or a quick quotation

Our engineers can quickly confirm whether 10x15 is the right size for your system and recommend the best solution for your machine.

Choosing the right drag chain starts with the right size—and the right supplier.
