Mastering Drag Chain Installation for Smooth Cable Management

Efficient cable management is essential for any automated system. A well-planned drag chain installation not only keeps cables organized but also protects them from bending, tangling, or damage. Shengda provides reliable drag chain solutions designed for long-lasting performance and easy setup, helping industries improve efficiency while reducing maintenance costs.

Preparing for Drag Chain Installation

Before starting your drag chain installation, inspect the machine’s moving parts and determine the required chain length and bend radius. Make sure the mounting area is clean and free of debris. Shengda’s drag chains come with pre-fitted components and clear installation guidelines, allowing both beginners and professionals to achieve a secure setup quickly.

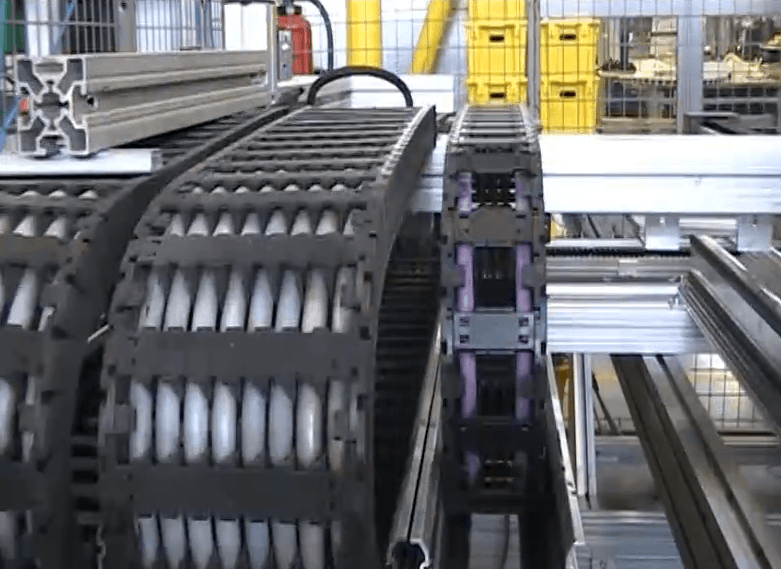

Proper Cable Routing in Drag Chain

Correct cable routing in drag chain systems is critical to prevent premature wear. Cables should move freely within the chain without twisting or excessive tension. For best results, route cables in parallel, leaving small gaps to accommodate movement. Shengda’s chains are engineered with smooth internal surfaces and reinforced nylon materials, ensuring minimal friction and long-term durability.

Installing Drag Chain End Connectors

A key part of the installation process is attaching the drag chain end connectors. These connectors secure the chain to the machine frame and ensure stability during motion. Shengda provides durable, easy-to-assemble end connectors that fit various chain sizes and configurations. Compared to competitors, Shengda’s components are more flexible and can be customized for different mounting orientations, offering greater design freedom.

Drag Chain Replacement Steps

Over time, even high-quality chains may need maintenance. The drag chain replacement steps are simple:

1. Disconnect the old chain from the machine.

2. Remove all cables carefully.

3. Install the new Shengda chain by attaching end connectors first.

4. Route cables following proper spacing and tension guidelines.

5. Test movement to ensure smooth operation.

With Shengda’s modular design, replacements are quick and cost-effective — minimizing downtime in production environments.

Shengda Energy Chain vs Igus: A Smart Choice

When comparing Shengda energy chain vs Igus, both brands offer strong durability and performance. However, Shengda provides the same quality at a lower price, along with faster lead times and greater flexibility for small-batch or custom orders. Whether you need standard lengths or specific configurations, Shengda ensures a responsive service tailored to your project needs.

Conclusion
A successful drag chain installation depends on careful cable routing in drag chain, reliable drag chain end connectors, and clear drag chain replacement steps. Shengda makes this process easier with innovative designs and precision manufacturing. Offering the same reliability as Igus but at a more competitive price and shorter delivery time, Shengda remains the trusted partner for industrial automation and motion control.
